Product:PM Series G80 Alloy Steel Hanging Die Rod

Specifications:M10~M48

         (Metric M thread, American UNC thread, British BSW thread, a variety of specifications spot)

Product number:PM    |     Specifications:M10~M48    |

Load range:0.8T~15T    |   Main material:42CrMoA

Color:primary colour    |   Horizontal rotation:    |   Vertical flip:    |

Wechat attention

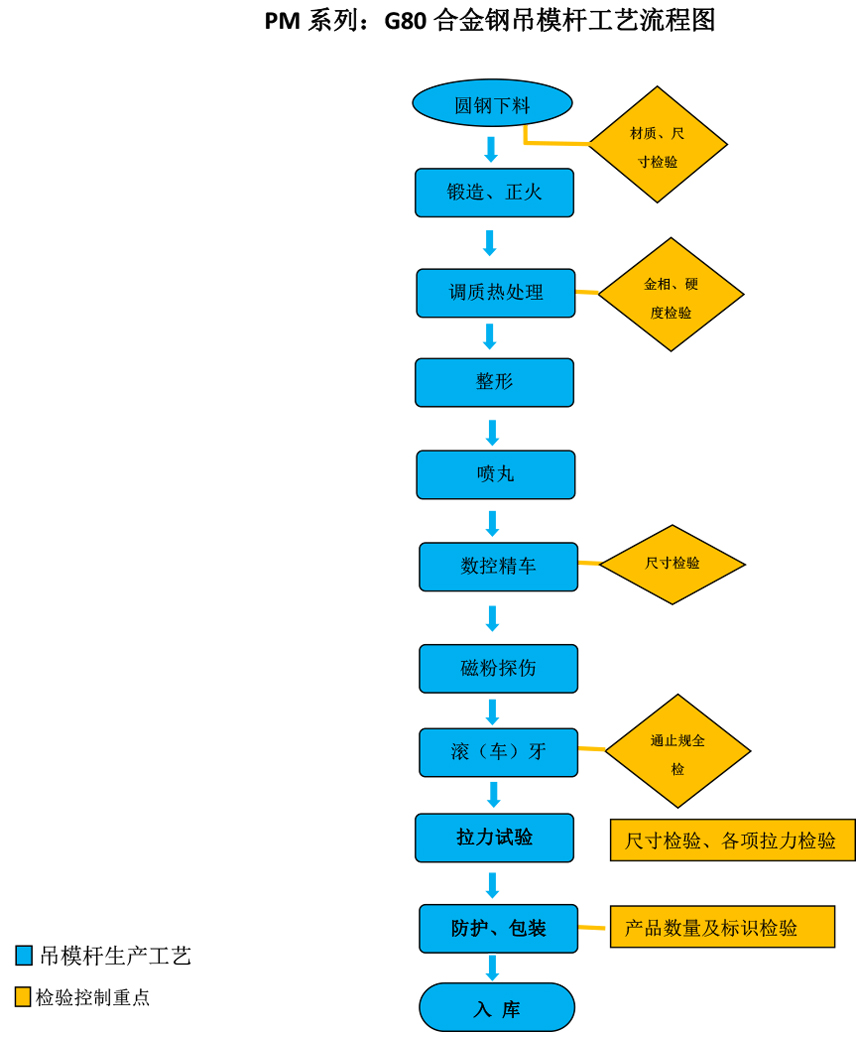

PM Series G80 Alloy Steel Hanging Die Rod  Process

PM Series G80 Alloy Steel Hanging Die Rod  Use cases

PM Series G80 Alloy Steel Hanging Die Rod  Parameters

PM series G80 Alloy Steel Level Lifting Rod

Executive standardEN ISO 12100:2010

      The hanging rod is a simple lifting tool which is convenient for die and mould industry and machinery manufacturing industry to lift, transport and turn over plate and mould quickly in the manufacturing process. It is safe, convenient and quick to use.

1、Product photographs


2、Product size table

Model

M

L1

L2

H1

H2

L3

d1

d2

d3

d4

f

PM-M10

M10x1.5

17

46

14

6.5

10

7.6

35

18

32

3

PM-M12

M12x1.75

21

46

14

6.5

11.5

9.4

35

18

32

3.5

PM-M16

M16x2.0

27

46

14

6.5

13

13.0

35

18

32

4

PM-M20

M20x2.5

30

51

20

8.5

16

16.4

50

26

46

5

PM-M24

M24x3.0

36

51

20

8.5

19

19.6

50

26

46

6

PM-M30

M30x3.5

45

85

26

11

24

25.0

75

38

70

7

PM-M36

M36x4.0

54

85

26

11

26

30.3

75

38

70

8

PM-M42

M42x4.5

63

120

35

13.5

28

35.6

100

50

90

9

PM-M48

M48x5.0

68

120

35

13.5

31

41.0

100

50

90

10



3、Lifting method and load table

Specification of hanging rod

Diagram of lifting mode (only such lifting mode is allowed for lifting workpiece with lifting die rod)

M10

M12

M16

M20

M24

M30

M36

M42

M48

Lifting requirements: the maximum working safety limit load (WLL) t of the two (two) hanging rod must be carried in the horizontal direction and the lifting Angle cannot exceed 60 degrees

0.8

1.0

1.8

3.0

4.4

6.6

8

11.2

15

All above is only applicable to the situation: Ø lifting direction are 4 times the safety coefficient
--The threaded hole is of sufficient length to ensure that the screw rod is all screwed in;
--Screw firmly fixed and fit to the contact surface (screw in by hand, tool tightening is not allowed);
--Equipment material can withstand pressure, will not deform, leading to safety risks.
For more detailed operation instructions, see the corresponding operation manual.

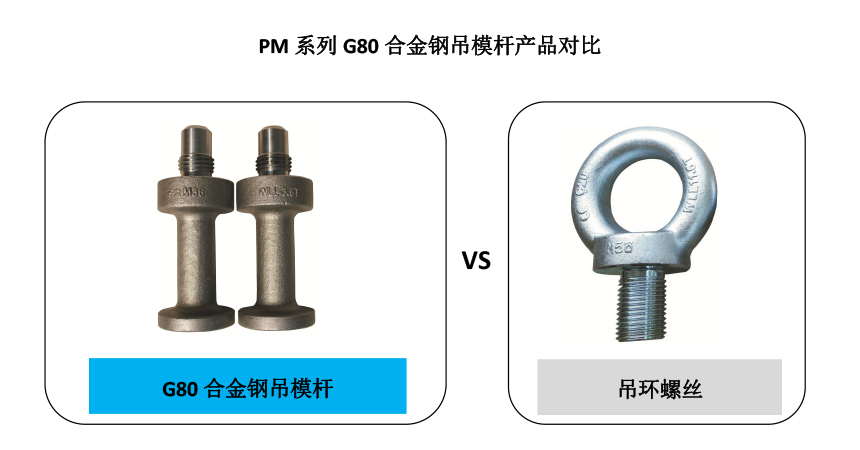

PM Series G80 Alloy Steel Hanging Die Rod  Comparison

product name

DIN580 carbon steel lifting ring screw

International Ring screw Gleason

Gernan eyebolt

Execution standard

EN ISO 12100:2010

GB/T 825-1988

DIN580-2009

product specifications

M8~M100,9 regular specifications
1/2-13UNC~2-4 1/2UNC,8 American thread specifications
Support non-standard thread custom production

M8~M100
16 General standard specification

M8~M100
16 General standard specification

product use


Dedicated to side lifting, easy to turn over plate, turn over mold,

work piece flat lifting more convenient and fast;



The most suitable for single lifting ring vertical lifting;
There is no multiple lifting ring combination side pull working load standard;
Lateral hoisting is not convenient and safe.


The product load

High working load, safe and reliable.

The lifting load in all directions is low, and the cable-pull and side-pull are unsafe.

material

High alloy steel (G80 grade steel), quenching and tempering treatment HRC32~36°

Q235B, no normalizing treatment;

thread accuracy

Thread to ensure 6G accuracy, GO-NO GO FIXED GAUGES complete inspection,fully qualified;

Thread can not ensure the accuracy of 6G, through stop rules can not ensure full inspection,

 can not ensure that fully qualified;

trademark

With the trademark "Pingli", the products can be traced back and the quality is guaranteed;

No trademark, products can not be traced, quality is not guaranteed;

CE certification

Has the European Union safety certification CE certificate, the product conforms

 to the relevant standards;

No European safety certification CE certificate, the product does

 not meet the relevant standards;

with product number

product number, convenient traceability of products;

No product number, the product can not be traced;

Product liability insurance

Purchase of China life product liability insurance, safety accident is guaranteed.

No product liability insurance

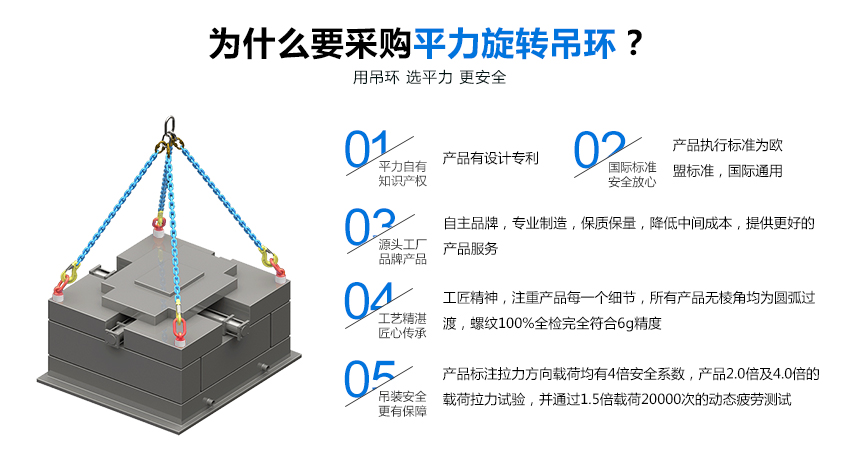

PM Series G80 Alloy Steel Hanging Die Rod  Advantages


PM Series G80 Alloy Steel Hanging Die Rod  Install and use

PM Series G80 Alloy Steel Hanging Die Rod  Download

Technical information Download

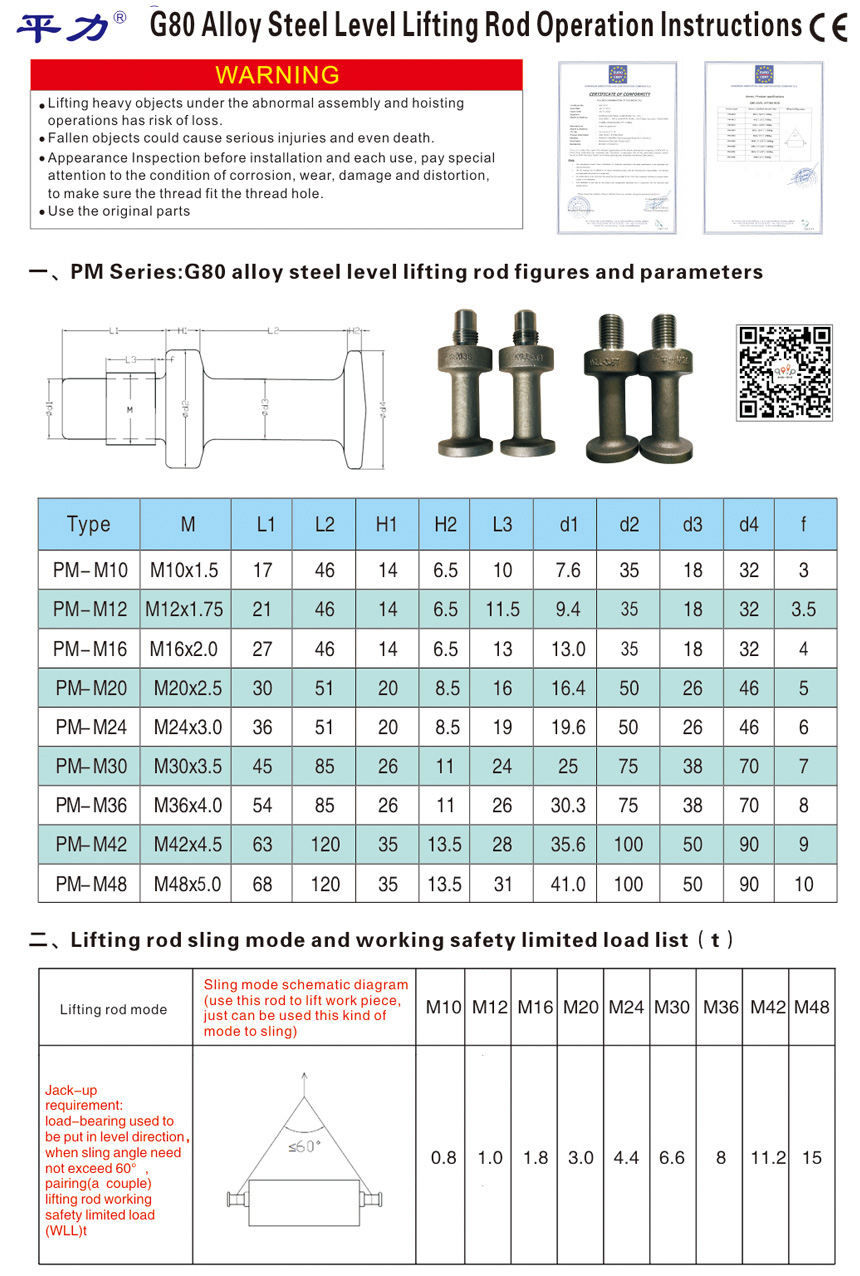

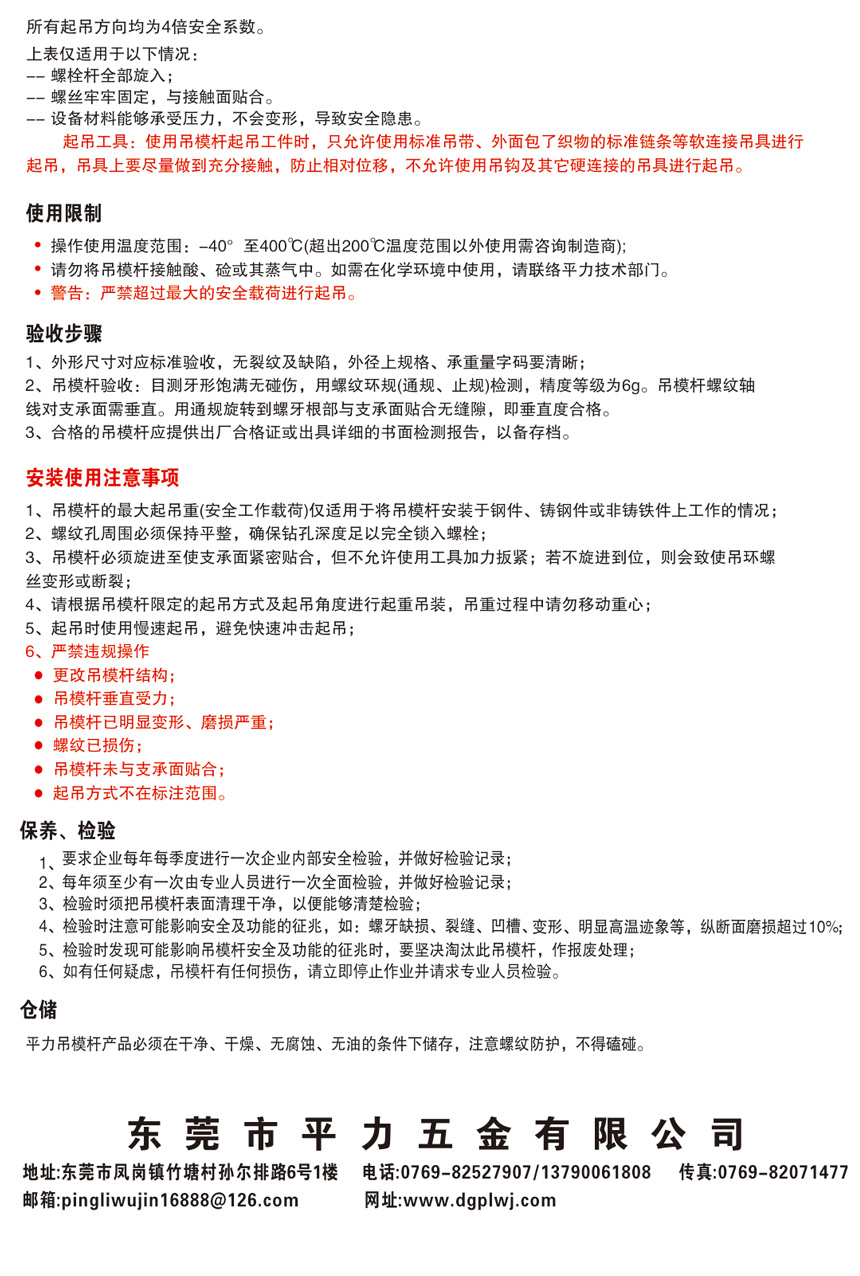

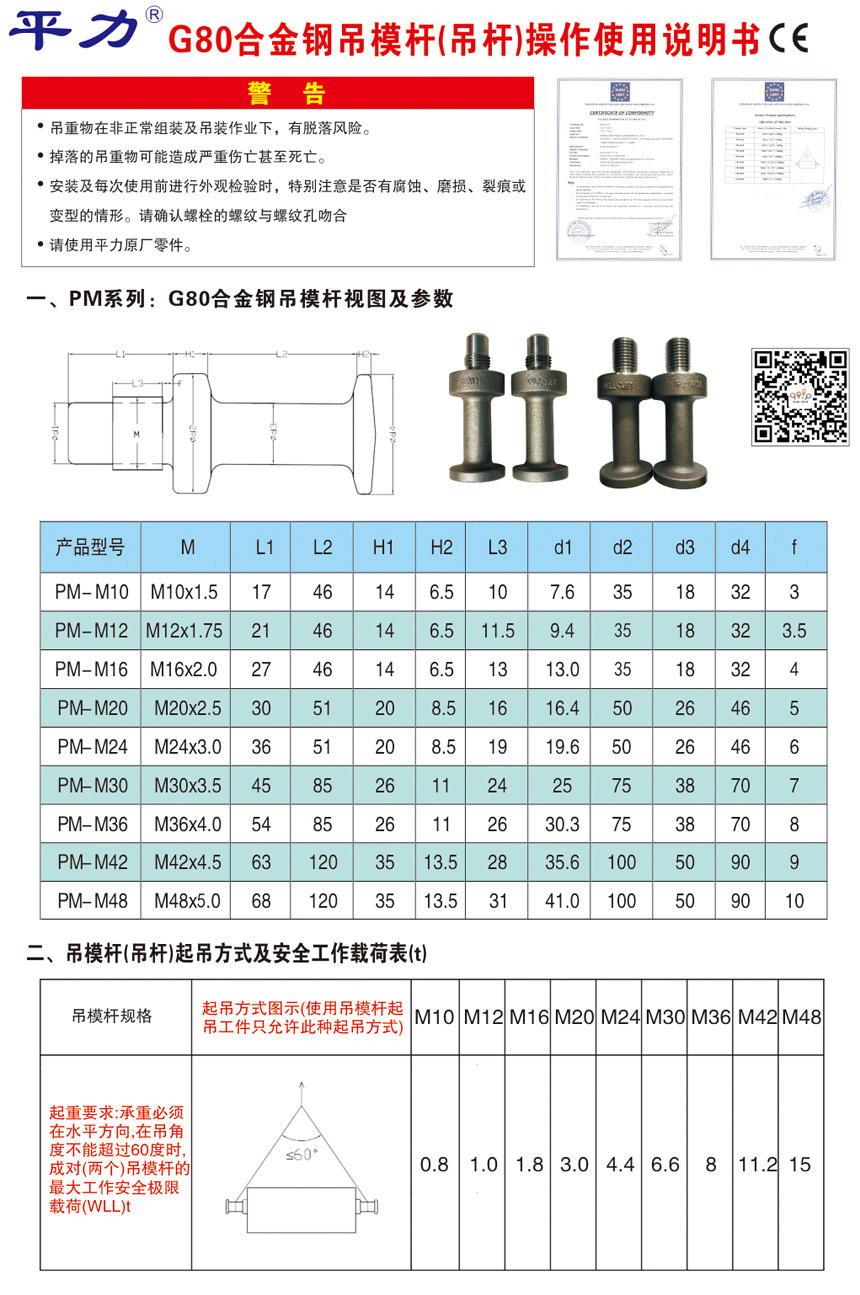

PM series products safe operation instructions in the book File download
PM process flow File download
