Product:PD Series Carbon Steel Lifting Ring Screw

Specifications:M8~M100

         (Metric M thread, American UNC thread, British BSW thread, a variety of specifications spot)

Product number:PD    |     Specifications:M8~M100    |

Load range:0.14T~38T    |   Main material:C20

Color:primary colour    |   Horizontal rotation:    |   Vertical flip:    |

Wechat attention

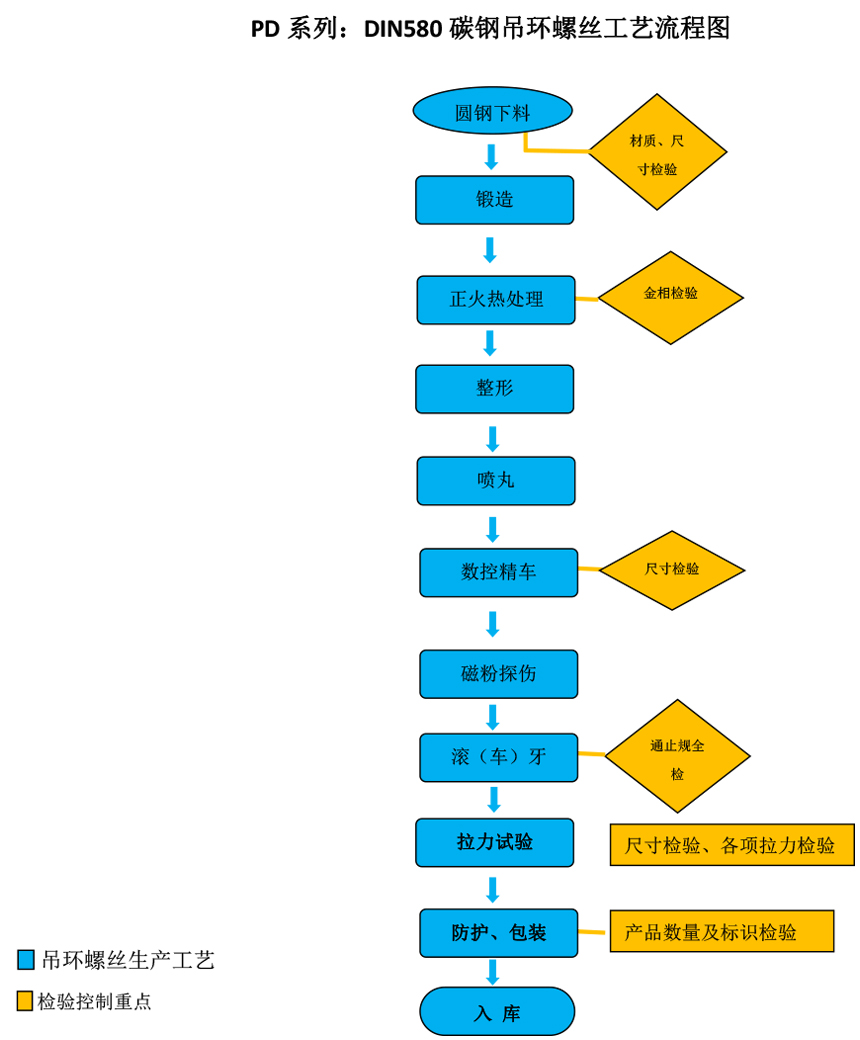

PD Series Carbon Steel Lifting Ring Screw  Process

PD Series Carbon Steel Lifting Ring Screw  Use cases


PD Series Carbon Steel Lifting Ring Screw  Parameters

PDeries  Carbon Steel Lifting Eyebolt

Executive standardEN ISO 12100:2010DIN 580: 2010-09

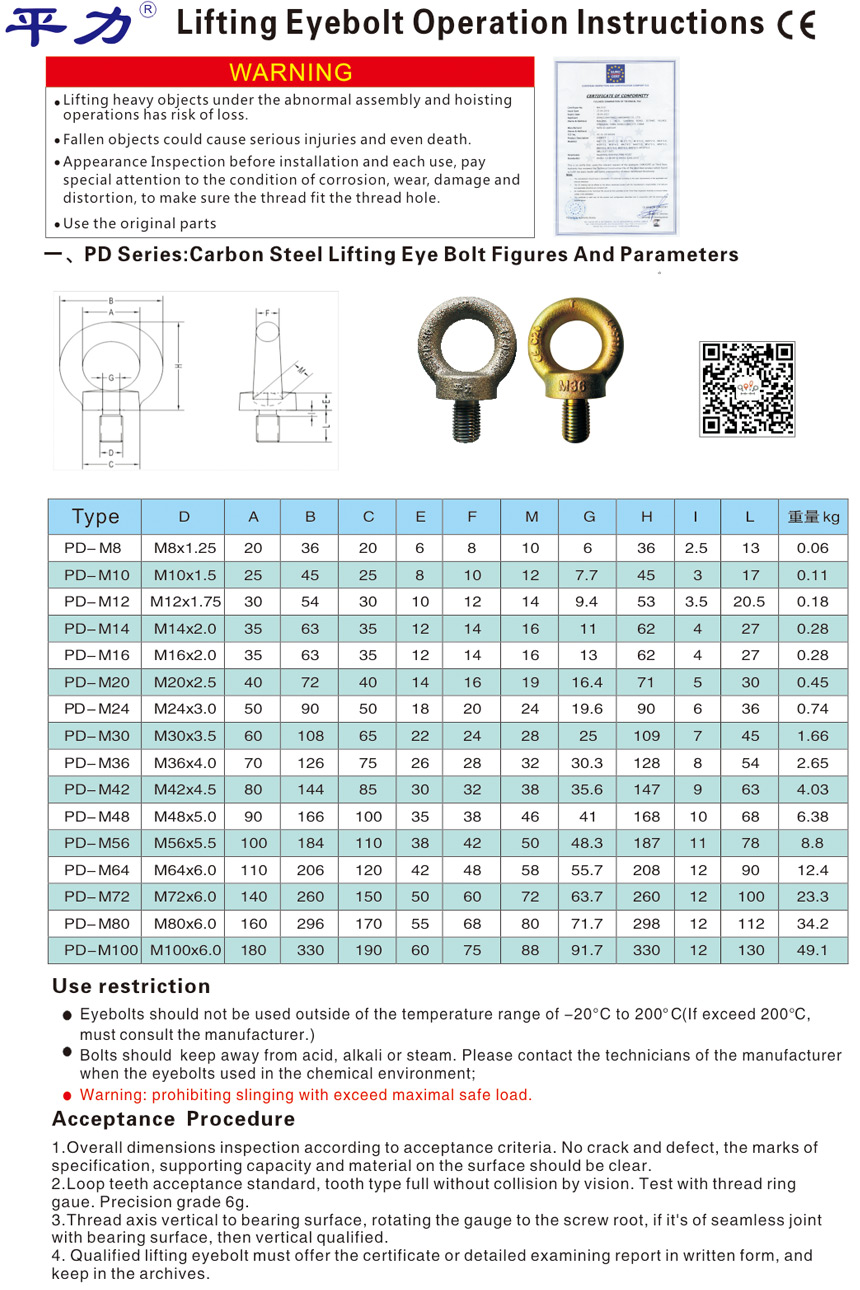

1、Product photographs



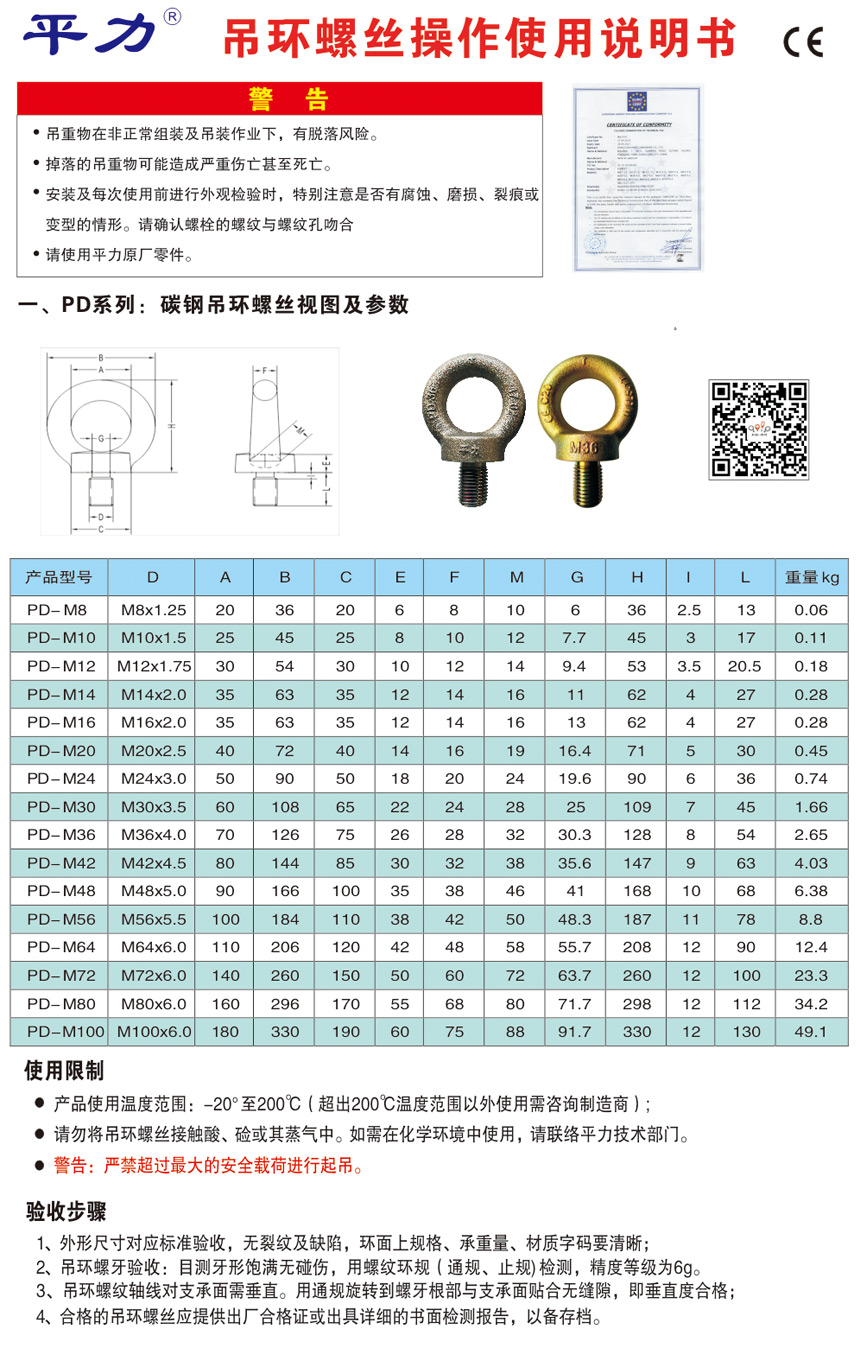

2、Product size table

Product model

D

A

B

C

E

F

M

G

H

I

L

Weight

kg


PD-M8

M8x1.25

20

36

20

6

8

10

6

36

2.5

13

0.06

PD-M10

M10x1.5

25

45

25

8

10

12

7.7

45

3

17

0.11

PD-M12

M12x1.75

30

54

30

10

12

14

9.4

53

3.5

20.5

0.18

PD-M14

M14x2.0

35

63

35

12

14

16

11

62

4

27

0.28

PD-M16

M16x2.0

35

63

35

12

14

16

13

62

4

27

0.28

PD-M20

M20x2.5

40

72

40

14

16

19

16.4

71

5

30

0.45

PD-M24

M24x3.0

50

90

50

18

20

24

19.6

90

6

36

0.74

PD-M30

M30x3.5

60

108

65

22

24

28

25

109

7

45

1.66

PD-M36

M36x4.0

70

126

75

26

28

32

30.3

128

8

54

2.65

PD-M42

M42x4.5

80

144

85

30

32

38

35.6

147

9

63

4.03

PD-M48

M48x5.0

90

166

100

35

38

46

41

168

10

68

6.38

PD-M56

M56x5.5

100

184

110

38

42

50

48.3

187

11

78

8.8

PD-M64

M64x6.0

110

206

120

42

48

58

55.7

208

12

90

12.4

PD-M72

M72x6.0

140

260

150

50

60

72

63.7

260

12

100

23.3

PD-M80

M80x6.0

160

296

170

55

68

80

71.7

298

12

112

34.2

PD-M100

M100x6.0

180

330

190

60

75

88

91.7

330

12

130

49.1



l Special specifications, can be customized;

United States(UNC)、British(BSW)are detailed in the attachment: the comparison table of metric specifications, American specifications and British specifications lifting ring screws.

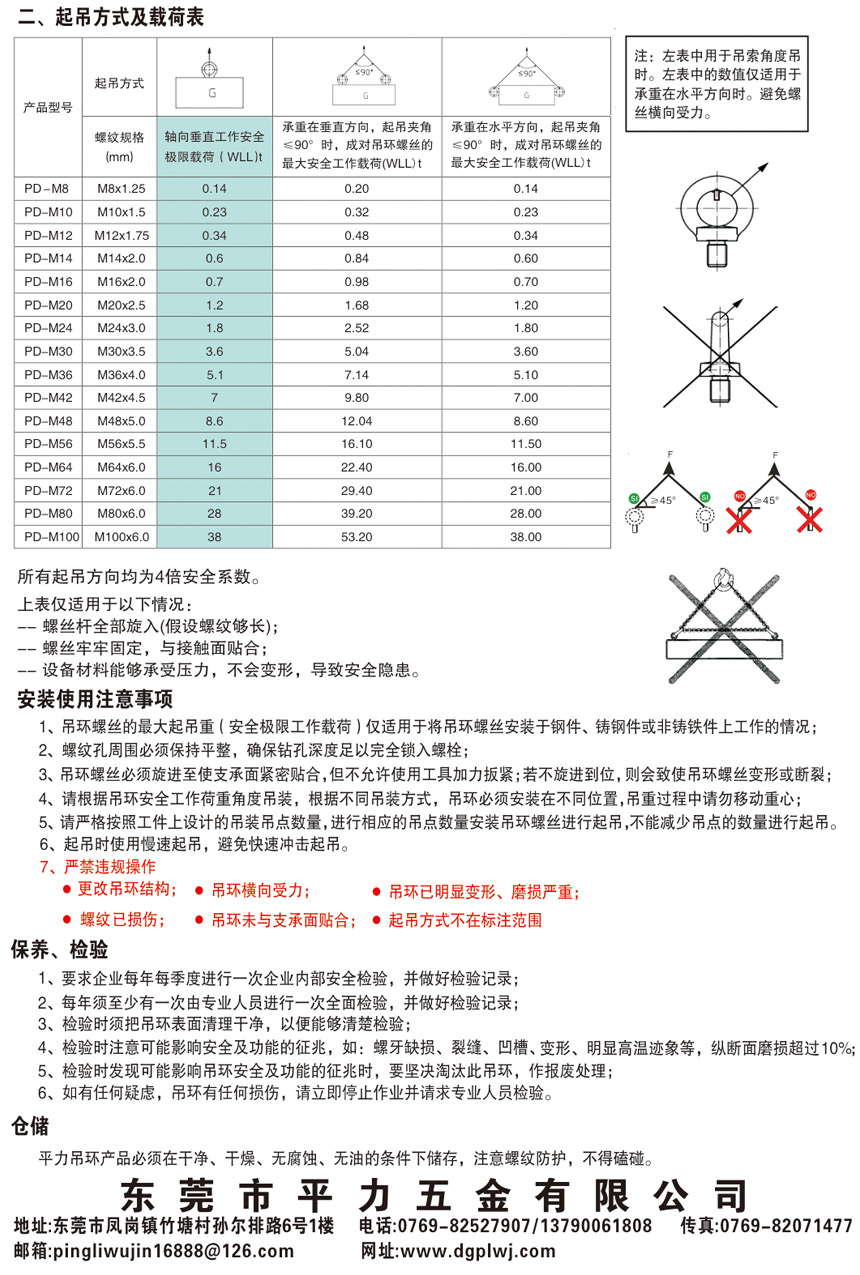

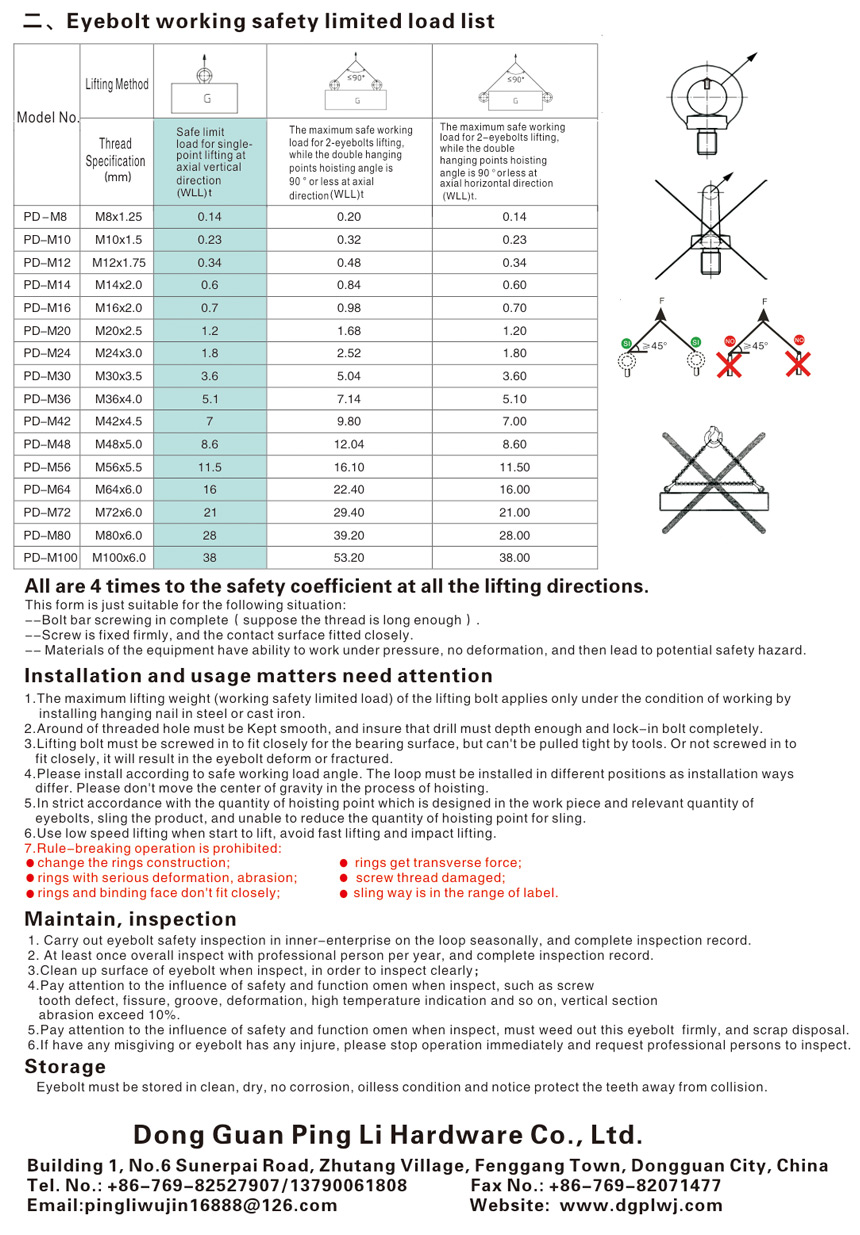

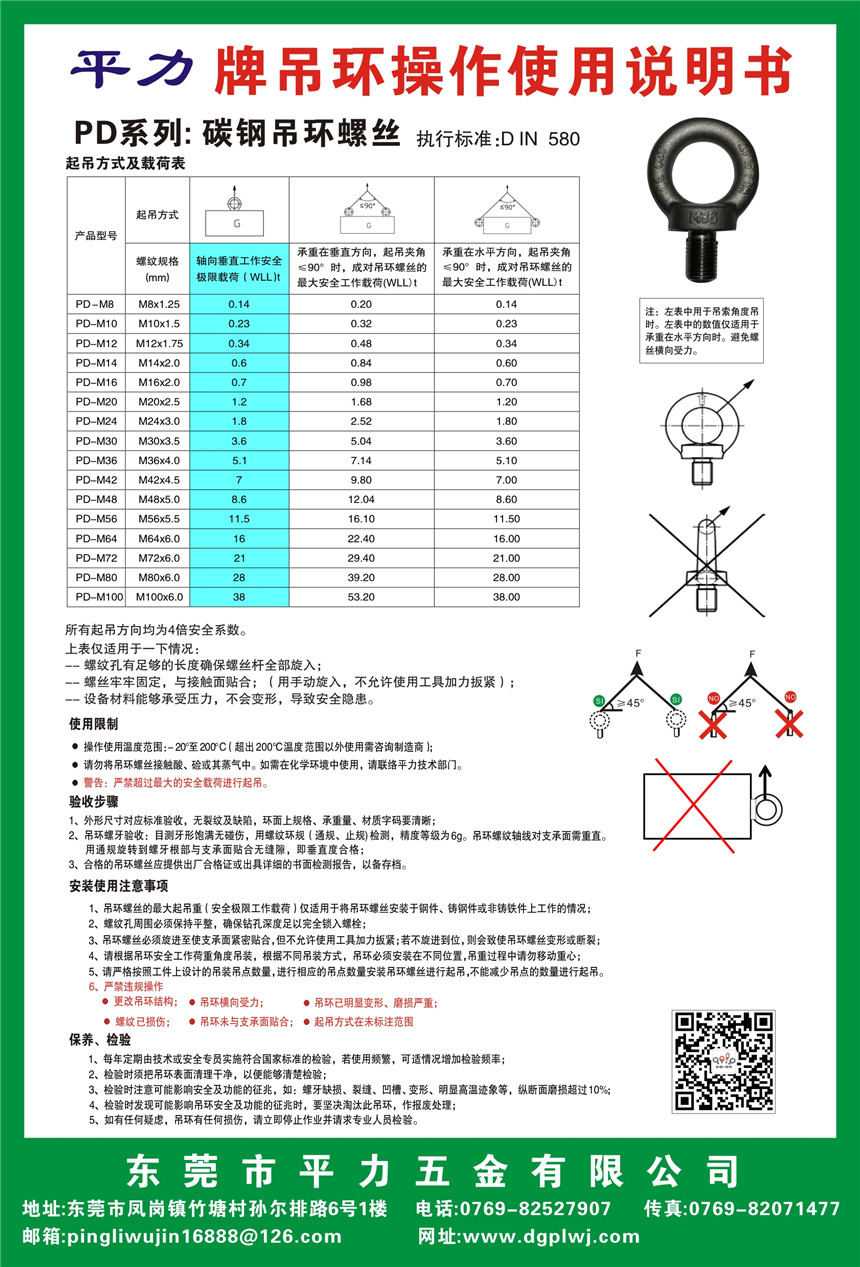

3、Lifting method and load table

Product model

Thread specification(mm)

Axial vertical work safety limit load (WLL) t

Load bearing in the vertical direction, when the lifting Angle is less than 45 degrees, the maximum safe working load (WLL) t of the lifting ring screw

Load bearing in horizontal direction, lifting Angle ≤45 degrees, the maximum safe working load (WLL) t of the lifting ring screw

PD-M8

M8x1.25

0.14

0.20

0.14

PD-M10

M10x1.5

0.23

0.32

0.23

PD-M12

M12x1.75

0.34

0.48

0.34

PD-M14

M14x2.0

0.6

0.84

0.60

PD-M16

M16x2.0

0.7

0.98

0.70

PD-M20

M20x2.5

1.2

1.68

1.20

PD-M24

M24x3.0

1.8

2.52

1.80

PD-M30

M30x3.5

3.6

5.04

3.60

PD-M36

M36x4.0

5.1

7.14

5.10

PD-M42

M42x4.5

7

9.80

7.00

PD-M48

M48x5.0

8.6

12.04

8.60

PD-M56

M56x5.5

11.5

16.10

11.50

PD-M64

M64x6.0

16

22.40

16.00

PD-M72

M72x6.0

21

29.40

21.00

PD-M80

M80x6.0

28

39.20

28.00

PD-M100

M100x6.0

38

53.20

38.00

All above is only applicable to the situation: Ø lifting direction are 4 times the safety coefficient
--The threaded hole is of sufficient length to ensure that the screw rod is all screwed in;
--Screw firmly fixed and fit to the contact surface (screw in by hand, tool tightening is not allowed);
--Equipment material can withstand pressure, will not deform, leading to safety risks.
For more detailed operation instructions, see the corresponding operation manual.

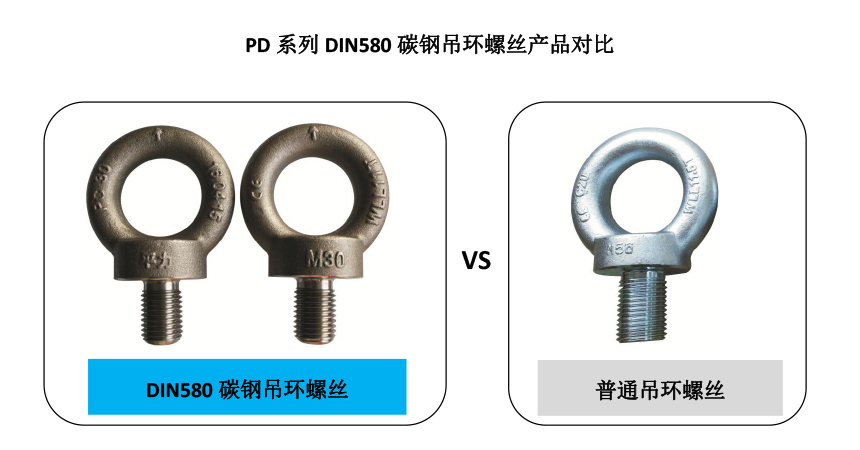

PD Series Carbon Steel Lifting Ring Screw  Comparison

product name

DIN580 carbon steel lifting ring screw

International Ring screw Gleason

Gernan eyebolt

Execution standard

EN ISO 12100:2010,DIN580:2010

GB/T 825-1988

DIN580-2009

product specifications

M8~M100,16 regular specifications
5/16-18UNC~4-4UNC,14 American thread specifications
Support non-standard thread custom production

M8~M100
16 General standard specification

M8~M100
16 General standard specification

product use



Vertical lifting, the maximum effective load, most suitable for single lifting ring vertical lifting;

Multiple lifting rings are combined with diagonal pull, and the overall working load is shown in

the table of lifting mode and working load.

Multiple lifting rings are combined for side-pulling, and the overall working load is shown in


the table of lifting mode and working load.



The most suitable for single lifting ring vertical lifting;
There is no standard of multiple suspension ring combination cable-pull working load;
There is no multiple lifting ring combination side pull working load standard;


The product load

All directions of lifting work load is high, more safe and reliable.

The lifting load in all directions is low, and the cable-pull and side-pull are unsafe.

material

C20, normalizing treatment;

Q235B, no normalizing treatment;

thread accuracy

Thread to ensure 6G accuracy, GO-NO GO FIXED GAUGES complete inspection,fully qualified;

Thread can not ensure the accuracy of 6G, through stop rules can not ensure full inspection,

 can not ensure that fully qualified;

trademark

With the trademark "Pingli", the products can be traced back and the quality is guaranteed;

No trademark, products can not be traced, quality is not guaranteed;

CE certification

Has the European Union safety certification CE certificate, the product conforms

 to the relevant standards;

No European safety certification CE certificate, the product does

 not meet the relevant standards;

with product number

product number, convenient traceability of products;

No product number, the product can not be traced;

Product liability insurance

Purchase of China life product liability insurance, safety accident is guaranteed.

No product liability insurance

PD Series Carbon Steel Lifting Ring Screw  Advantages


PD Series Carbon Steel Lifting Ring Screw  Install and use

PD Series Carbon Steel Lifting Ring Screw  Download

Technical information Download
PD series product parameters File download
Comparison of PD series products File download
PD series process flow File download
Safe operation instruction for PD series products File download
