Product:PE Series G80 Universal Directing Rotating Eyebolt Ring

Specifications:M8~M100

         (Metric M thread, American UNC thread, British BSW thread, a variety of specifications spot)

Product number:PE    |     Specifications:M8~M100    |

Load range:0.3T~40T    |   Main material:42CrMoA

Color:default nacarat    |   Horizontal rotation:360°    |   Vertical flip:230°可翻转    |

Wechat attention

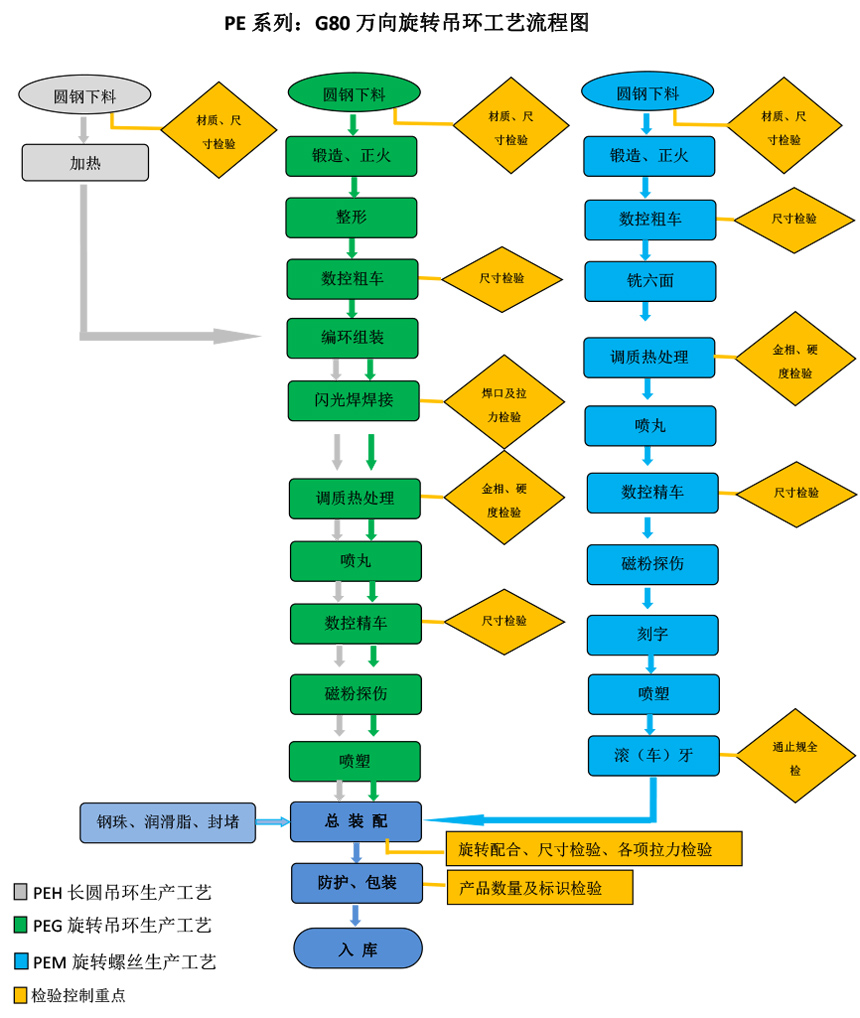

PE Series G80 Universal Directing Rotating Eyebolt Ring  Process

PE Series G80 Universal Directing Rotating Eyebolt Ring  Use cases



PE Series G80 Universal Directing Rotating Eyebolt Ring  Parameters

G80 Universal Directing rotating Lifting Eyebolt

Executive standard:EN ISO 12100:2010EN ISO 3266:2010+A1:2015EN 1677-4:2000+A1:2008

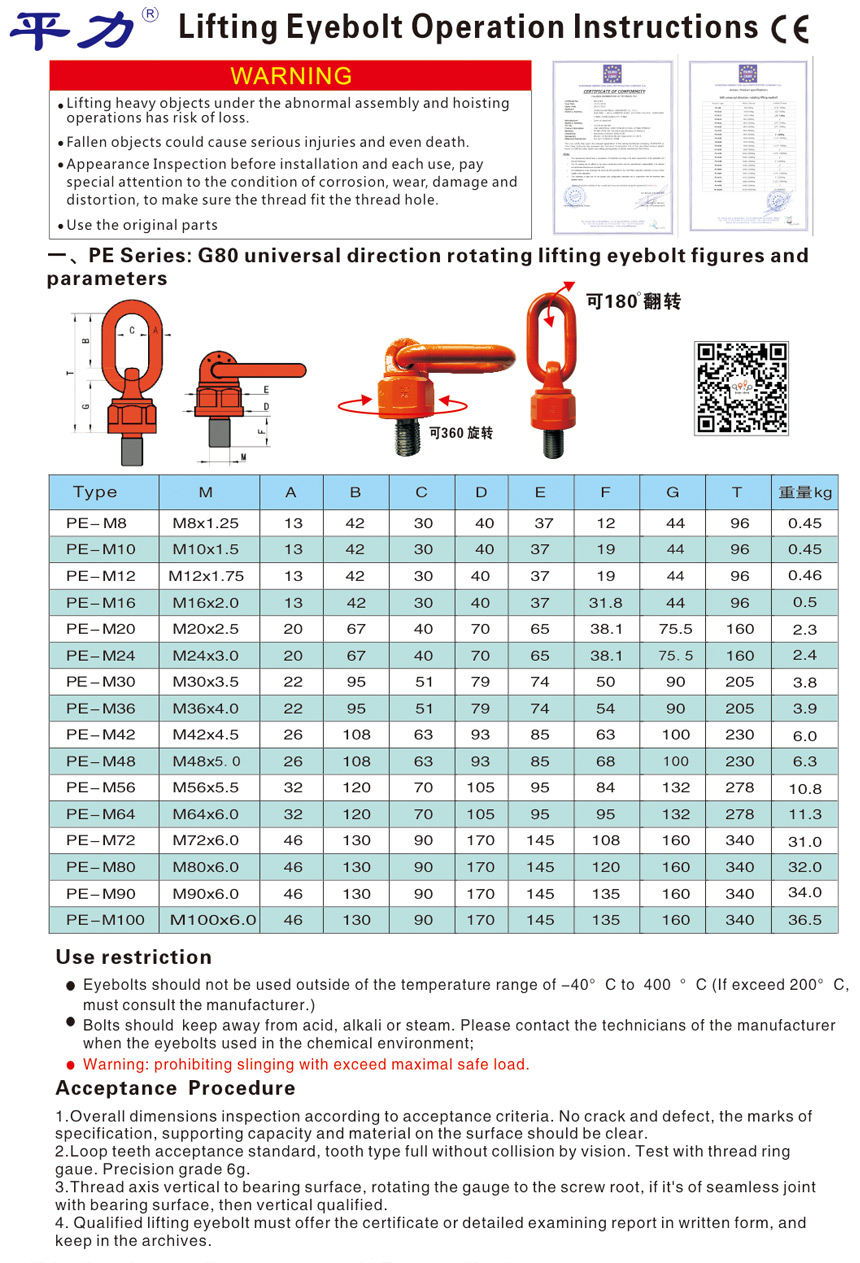

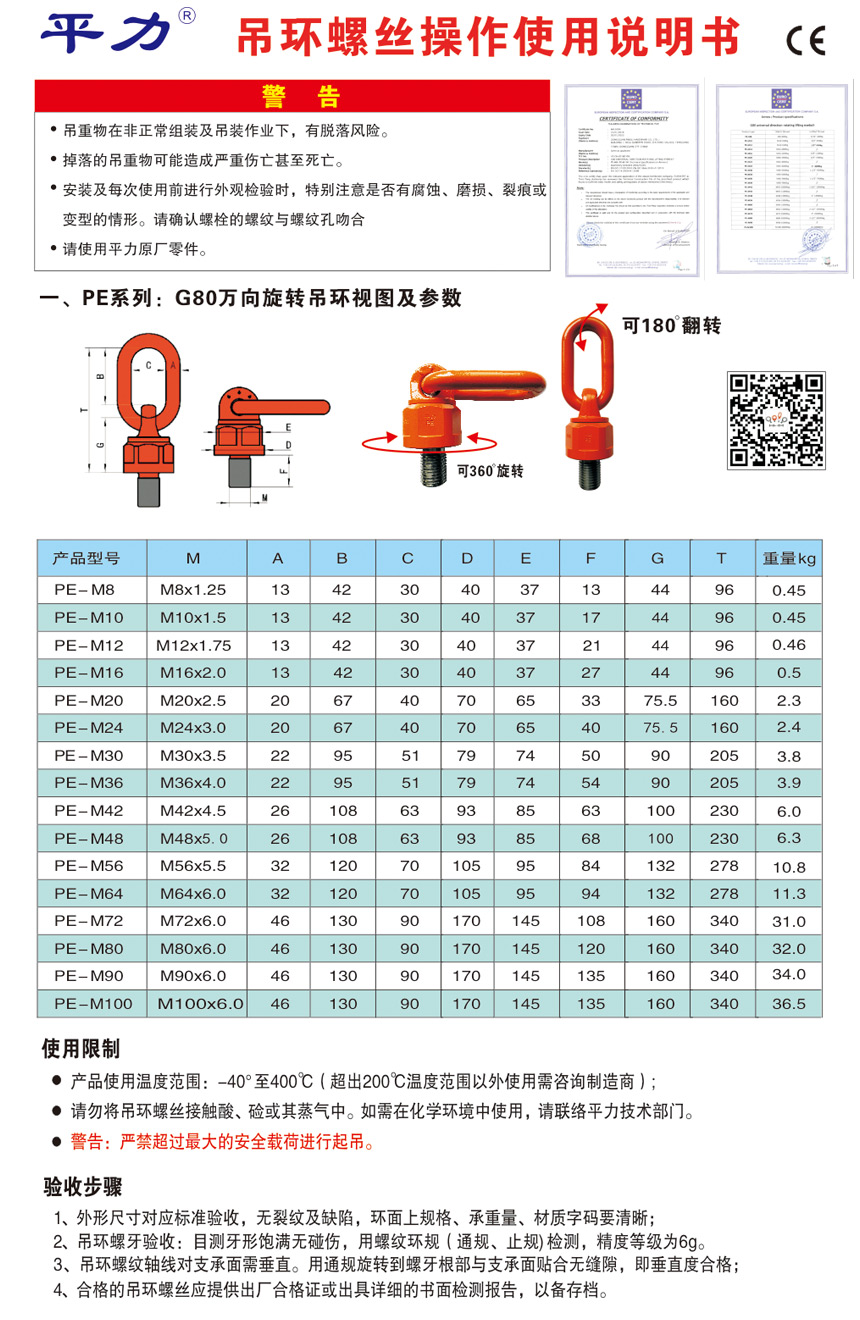

1、Product photographs

2、Product size table

product model

M

A

B

C

D

E

F

G

T

weight(kg)

PE-M8

M8x1.25

13

42

30

40

37

13

44

96

0.45

PE-M10

M10x1.5

13

42

30

40

37

17

44

96

0.45

PE-M12

M12x1.75

13

42

30

40

37

21

44

96

0.46

PE-M16

M16x2.0

13

42

30

40

37

27

44

96

0.5

PE-M20

M20x2.5

20

67

40

70

65

33

75.5

160

2.3

PE-M24

M24x3.0

20

67

40

70

65

40

75.5

160

2.4

PE-M30

M30x3.5

22

95

51

79

74

50

90

205

3.8

PE-M36

M36x4.0

22

95

51

79

74

54

90

205

3.9

PE-M42

M42x4.5

26

108

63

93

85

63

100

230

6.0

PE-M48

M48x5.0

26

108

63

93

85

68

100

230

6.3

PE-M56

M56x5.5

32

120

70

105

95

84

132

278

10.8

PE-M64

M64x6.0

32

120

70

105

95

94

132

278

11.3

PE-M72

M72x6.0

46

130

90

170

145

108

160

340

31.0

PE-M80

M80x6.0

46

130

90

170

145

120

160

340

32.0

PE-M90

M90x6.0

46

130

90

170

145

135

160

340

34.0

PE-M100

M100x6.0

46

130

90

170

145

135

160

340

36.5

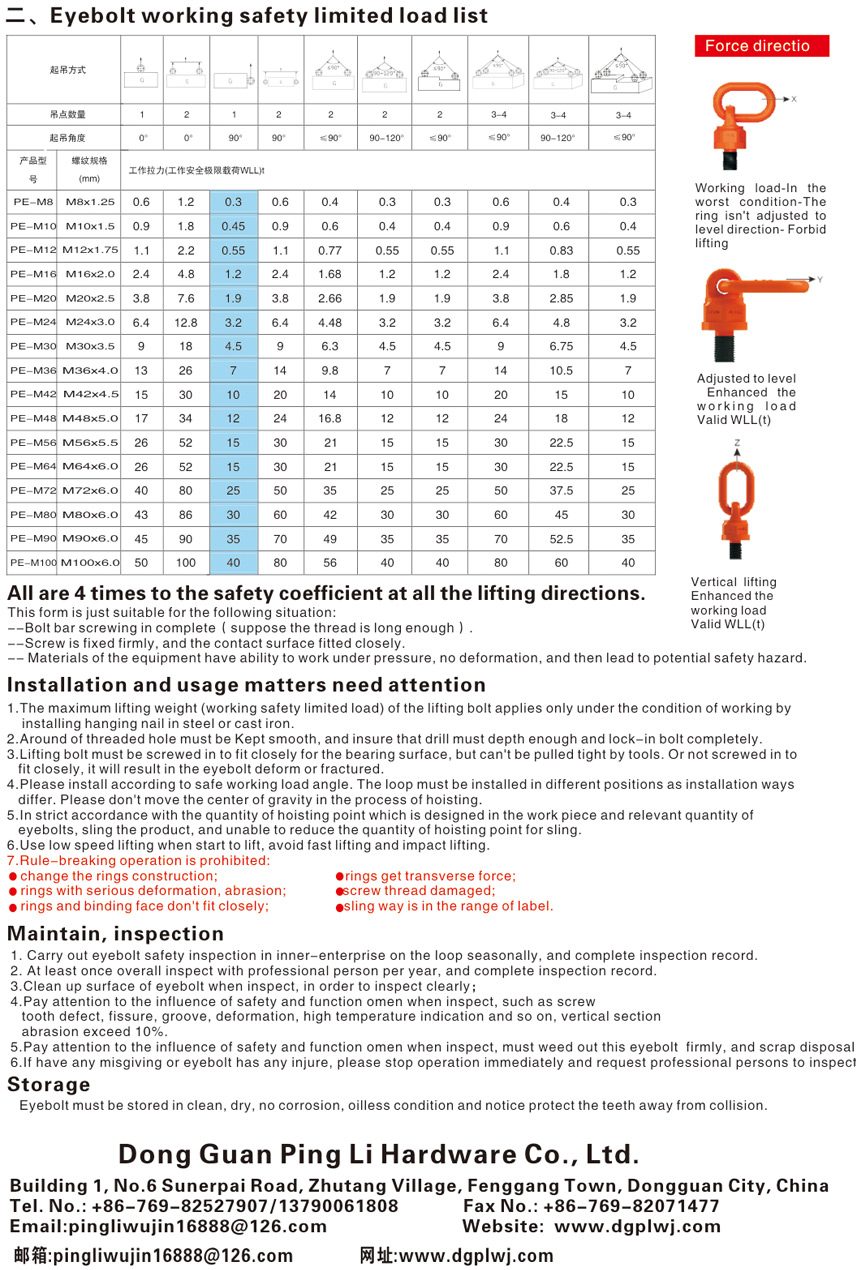

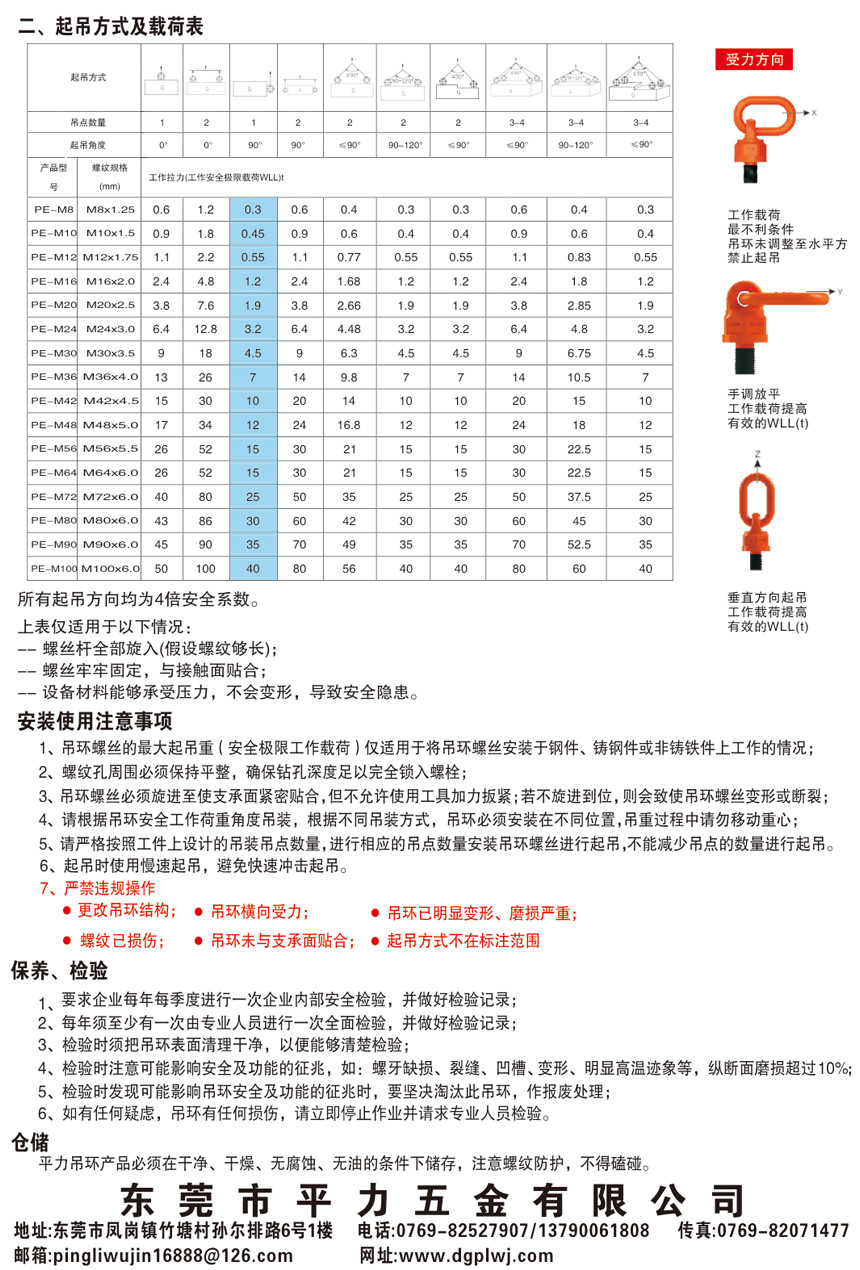

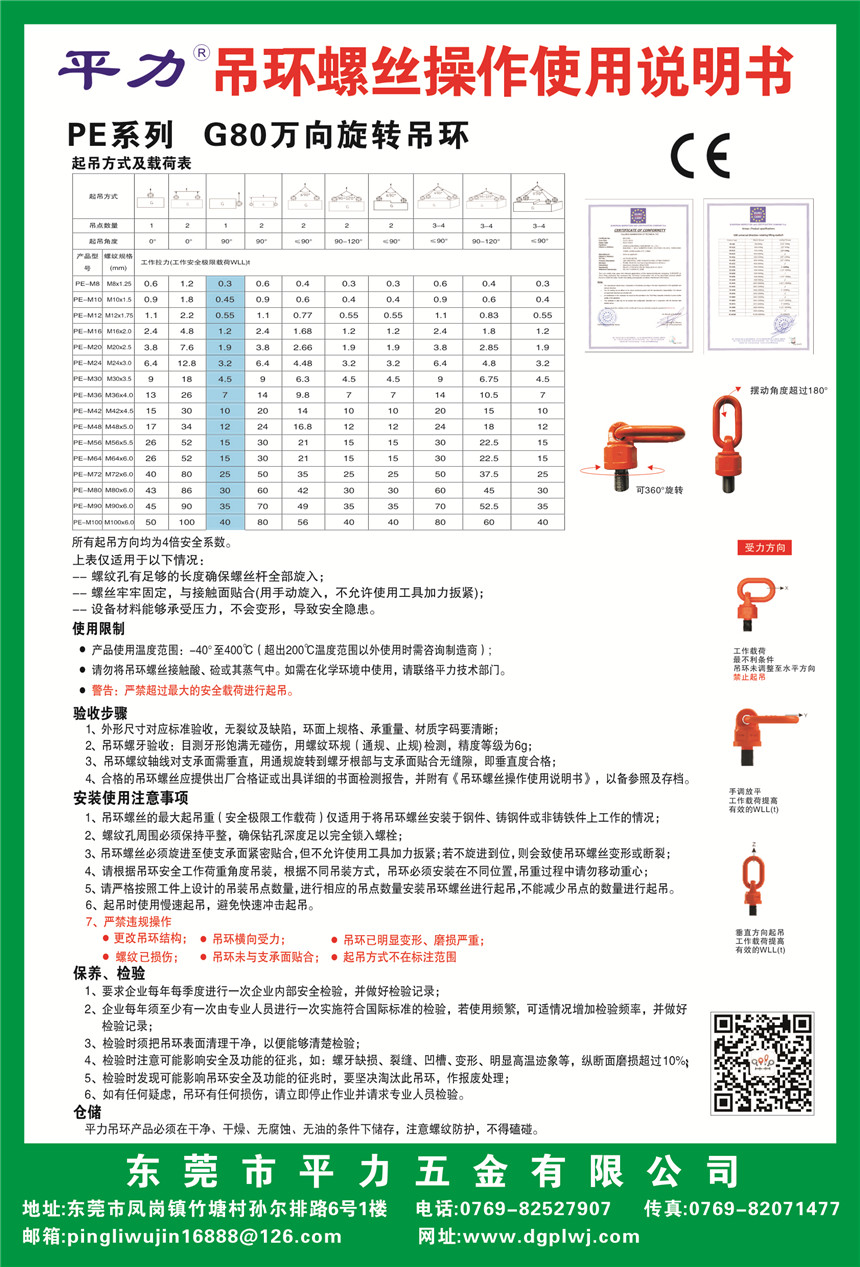

3、Lifting method and load table

Lifting way





















Lifting point number

1

2

1

2

2

2

2

3-4

3-4

3-4

Lifting Angle

90°

90°

≤90°

90-120°

≤90°

≤90°

90-120°

≤90°


Product model

Thread specification(mm)

Working tension (work safety limit load WLL) t

PE-M8

M8x1.25

0.6

1.2

0.3

0.6

0.4

0.3

0.3

0.6

0.4

0.3

PE-M10

M10x1.5

0.9

1.8

0.45

0.9

0.6

0.4

0.4

0.9

0.6

0.4

PE-M12

M12x1.75

1.1

2.2

0.55

1.1

0.77

0.55

0.55

1.1

0.83

0.55

PE-M16

M16x2.0

2.4

4.8

1.2

2.4

1.68

1.2

1.2

2.4

1.8

1.2

PE-M20

M20x2.5

3.8

7.6

1.9

3.8

2.66

1.9

1.9

3.8

2.85

1.9

PE-M24

M24x3.0

6.4

12.8

3.2

6.4

4.48

3.2

3.2

6.4

4.8

3.2

PE-M30

M30x3.5

9

18

4.5

9

6.3

4.5

4.5

9

6.75

4.5

PE-M36

M36x4.0

13

26

7

14

9.8

7

7

14

10.5

7

PE-M42

M42x4.5

15

30

10

20

14

10

10

20

15

10

PE-M48

M48x5.0

17

34

12

24

16.8

12

12

24

18

12

PE-M56

M56x5.5

26

52

15

30

21

15

15

30

22.5

15

PE-M64

M64x6.0

26

52

15

30

21

15

15

30

22.5

15

PE-M72

M72x6.0

40

80

25

50

35

25

25

50

37.5

25

PE-M80

M80x6.0

43

86

30

60

42

30

30

60

45

30

PE-M90

M90x6.0

45

90

35

70

49

35

35

70

52.5

35

PE-M100

M100x6.0

50

100

40

80

56

40

40

80

60

40



All above is only applicable to the situation: Ø lifting direction are 4 times the safety coefficient


--The threaded hole is of sufficient length to ensure that the screw rod is all screwed in;

--Screw firmly fixed and fit to the contact surface (screw in by hand, tool tightening is not allowed);

--Equipment material can withstand pressure, will not deform, leading to safety risks.

For more detailed operation instructions, see the corresponding operation manual.
