Product:PB Series G100 Eye Type Rotary Lifting Ring

Specifications:M8~M48

         (Metric M thread, American UNC thread, British BSW thread, a variety of specifications spot)

Product number:PB    |     Specifications:M8~M48    |

Load range:0.3T~12T    |   Main material:23MnCrNiMo54

Color:default nacarat    |   Horizontal rotation:360°    |   Vertical flip:    |

Wechat attention

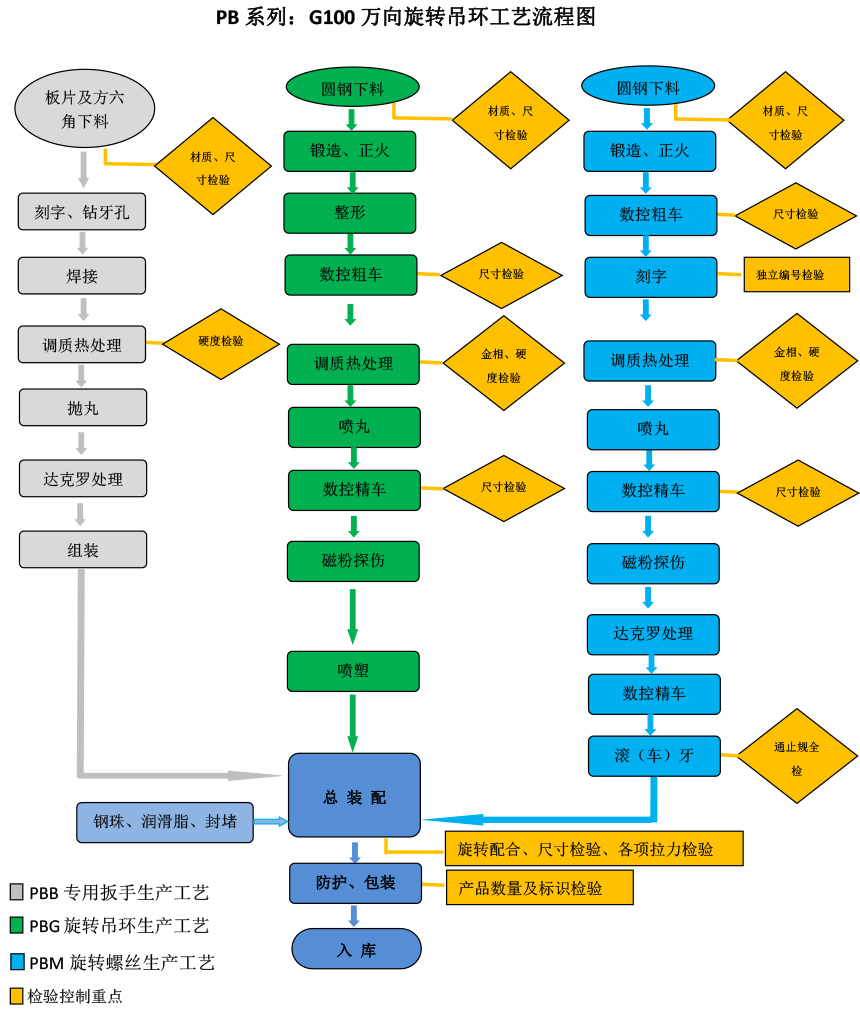

PB Series G100 Eye Type Rotary Lifting Ring  Process

PB Series G100 Eye Type Rotary Lifting Ring  Use cases


PB Series G100 Eye Type Rotary Lifting Ring  Parameters

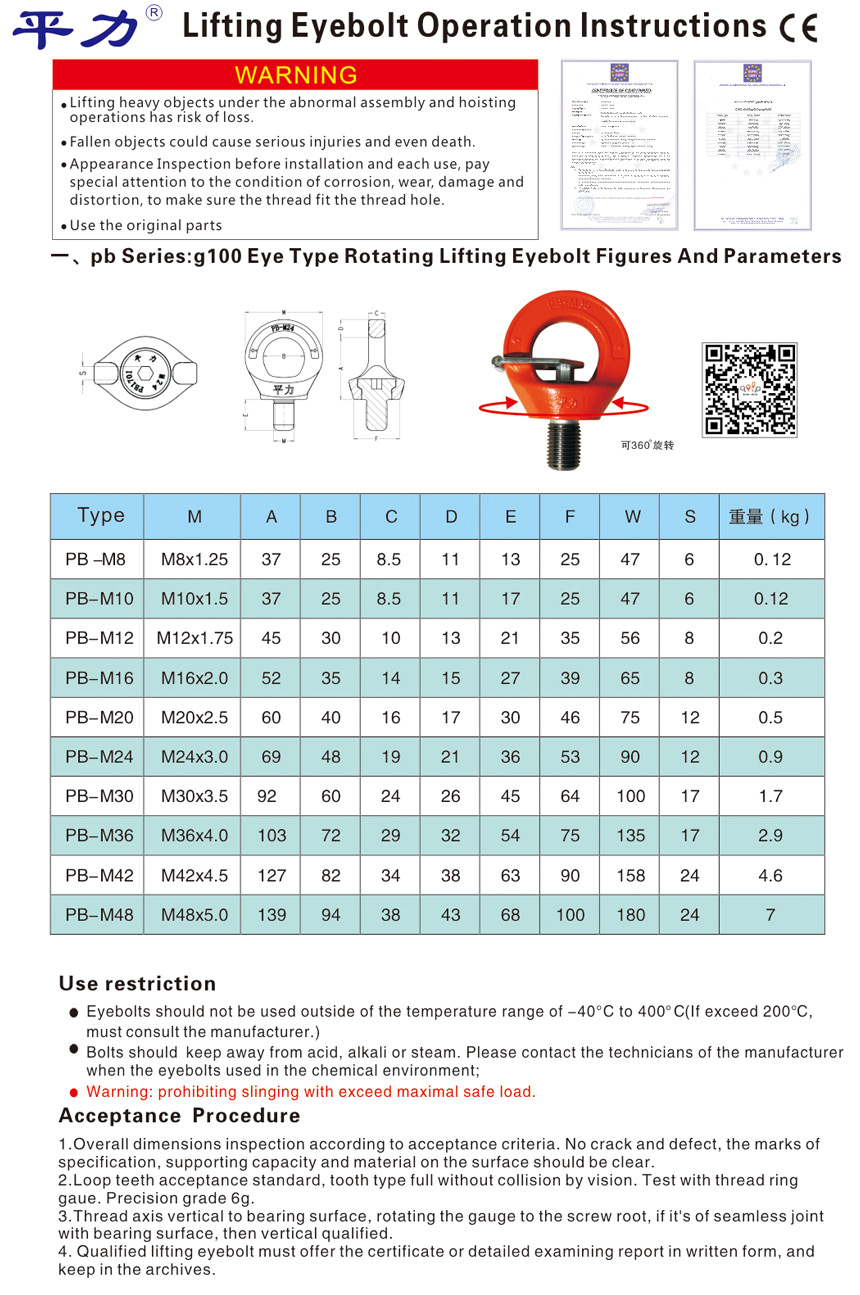

PB series  G100 Eye Type Rotating Lifting Eyebolt

Executive standard:EN ISO 12100:2010EN ISO 3266:2010+A1:2015


1、Product photographs



2、Product size table

product model

M

A

B

C

D

E

F

W

S

Weight(kg)

PB-M8

M8x1.25

37

25

8.5

11

13

25

47

6

0.32

PB-M10

M10x1.5

37

25

8.5

11

17

25

47

6

0.38

PB-M12

M12x1.75

45

30

10

13

21

35

56

8

0.5

PB-M16

M16x2.0

52

35

14

15

27

39

65

10

0.55

PB-M20

M20x2.5

60

40

16

17

30

46

75

12

0.66

PB-M24

M24x3.0

69

48

19

21

36

53

90

14

1.06

PB-M30

M30x3.5

92

60

24

26

45

64

100

17

2.15

PB-M36

M36x4.0

103

72

29

32

54

75

135

22

3.7

PB-M42

M42x4.5

127

82

34

38

63

90

158

24

6.35

PB-M48

M48x5.0

139

94

38

43

68

100

180

27

9.7

l Special specifications, can be customized;

United States(UNC)、British(BSW)are detailed in the attachment: the comparison table of metric specifications, American specifications and British specifications lifting ring screws.

3、Tions and British specifications lifting ring screws.

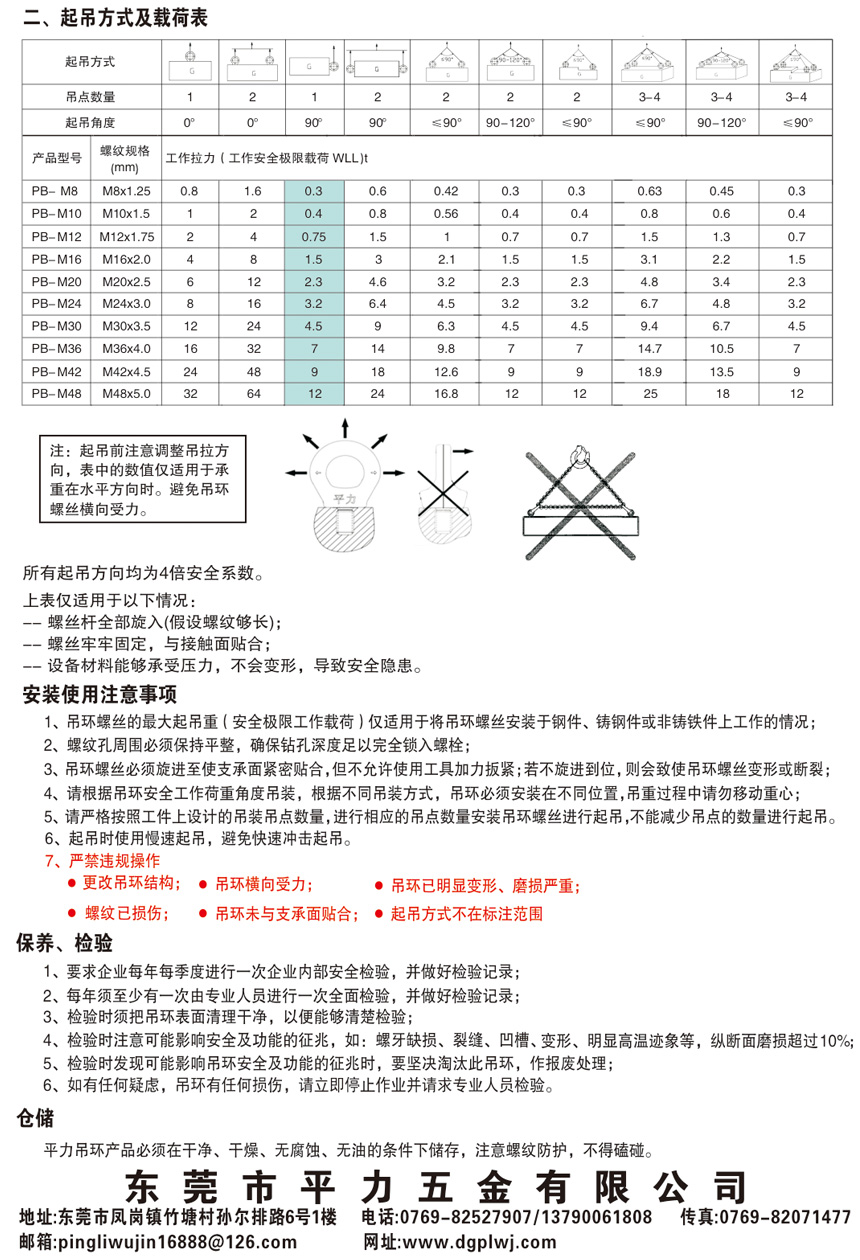

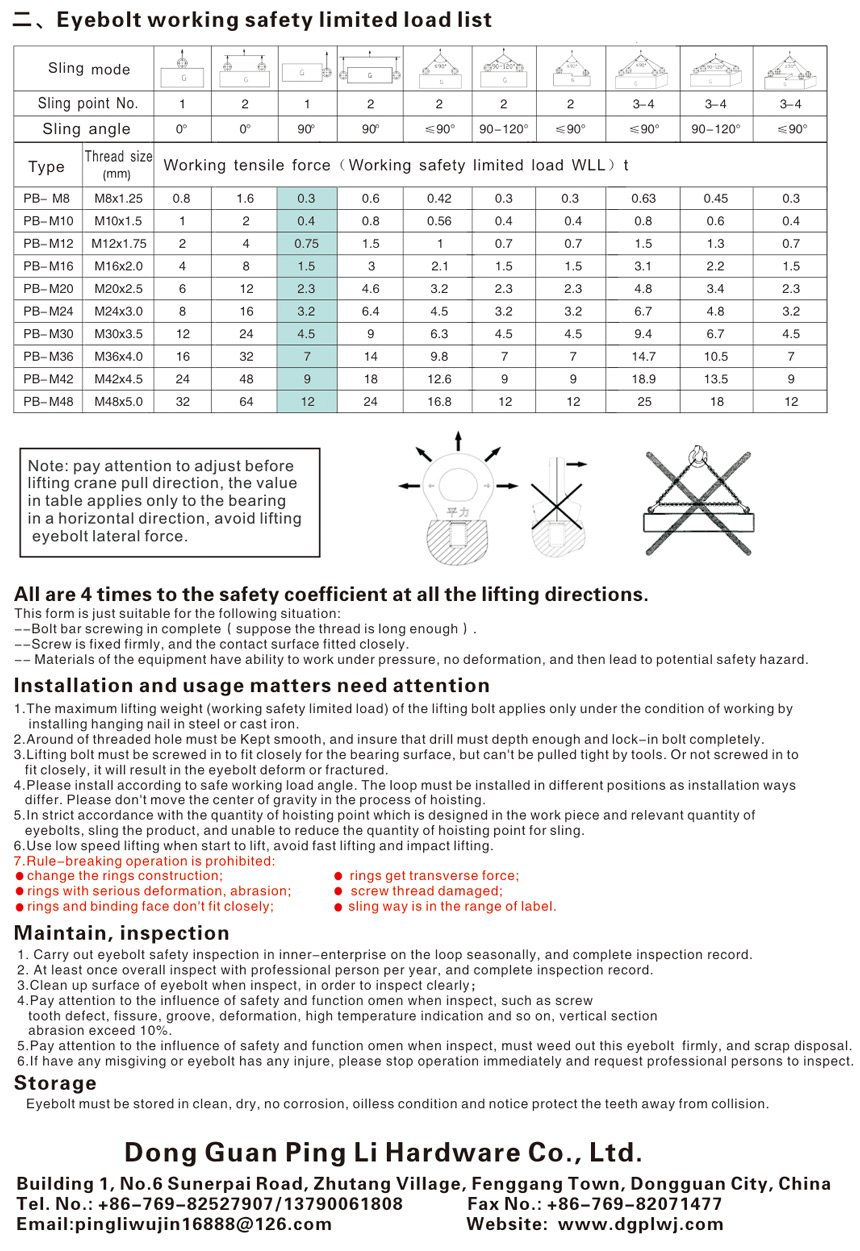

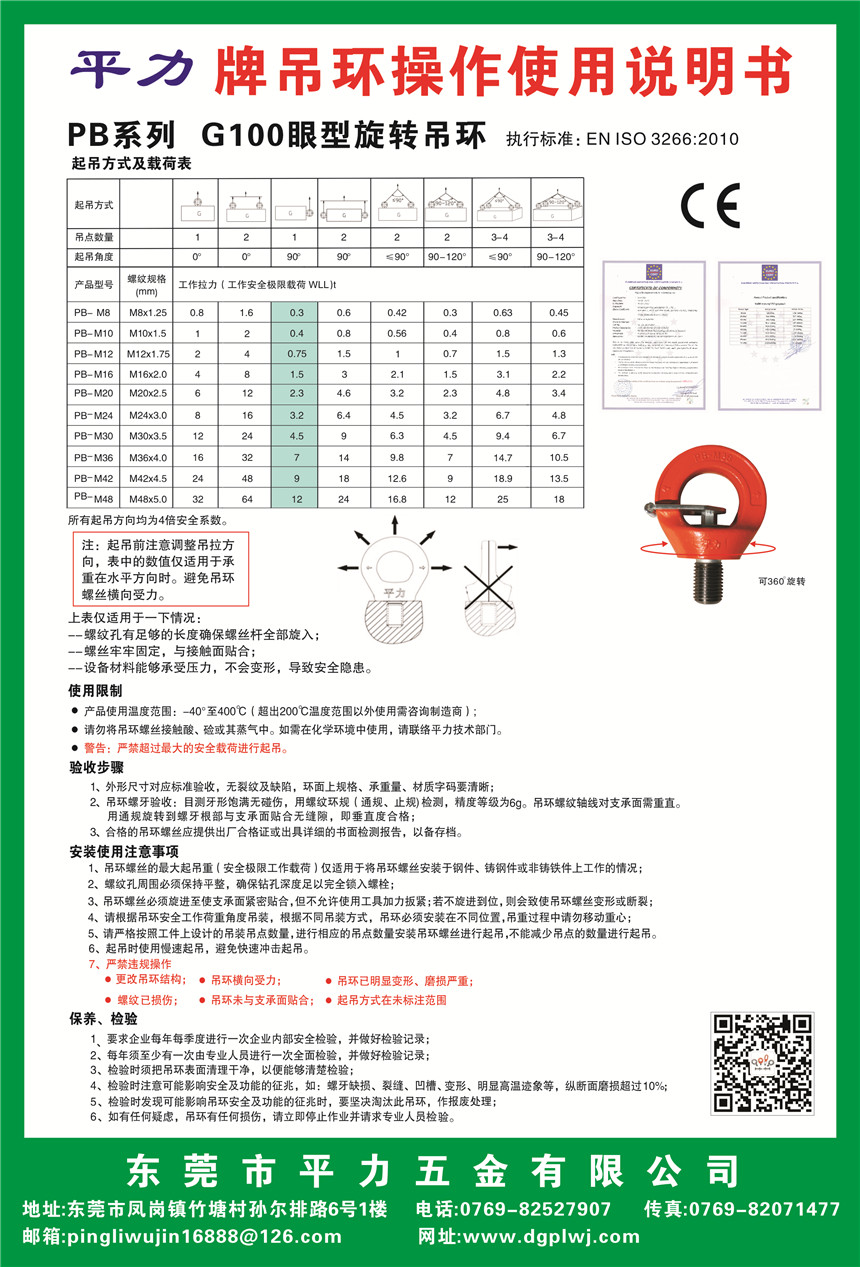

Lifting way





Lifting point number

1

2

1

2

2

2

2

3-4

3-4

3-4

Lifting Angle

90°

90°

≤90°

90-120°

≤90°

≤90°

90-120°

≤90°

product model

Thread specification(mm)

Working tension (work safety limit load WLL) t

PB-M8

M8x1.25

0.8

1.6

0.3

0.6

0.42

0.3

0.3

0.63

0.45

0.3

PB-M10

M10x1.5

1

2

0.4

0.8

0.56

0.4

0.4

0.8

0.6

0.4

PB-M12

M12x1.75

2

4

0.75

1.5

1

0.7

0.7

1.5

1.3

0.7

PB-M16

M16x2.0

4

8

1.5

3

2.1

1.5

1.5

3.1

2.2

1.5

PB-M20

M20x2.5

6

12

2.3

4.6

3.2

2.3

2.3

4.8

3.4

2.3

PB-M24

M24x3.0

8

16

3.2

6.4

4.5

3.2

3.2

6.7

4.8

3.2

PB-M30

M30x3.5

12

24

4.5

9

6.3

4.5

4.5

9.4

6.7

4.5

PB-M36

M36x4.0

16

32

7

14

9.8

7

7

14.7

10.5

7

PB-M42

M42x4.5

24

48

9

18

12.6

9

9

18.9

13.5

9

PB-M48

M48x5.0

32

64

12

24

16.8

12

12

25

18

12


All above is only applicable to the situation: Ø lifting direction are 4 times the safety coefficient

--The threaded hole is of sufficient length to ensure that the screw rod is all screwed in;

--Screw firmly fixed and fit to the contact surface (screw in by hand, tool tightening is not allowed);

--Equipment material can withstand pressure, will not deform, leading to safety risks.

For more detailed operation instructions, see the corresponding operation manual.









PB Series G100 Eye Type Rotary Lifting Ring  Comparison

product name

G100 eye swivel ring

International Ring screw Gleason

Gernan eyebolt

Execution standard

EN ISO 12100:2010,EN ISO 3266:2010

GB/T 825-1988

DIN580-2009

product specifications

M8~M100,16 regular specifications
5/16-18UNC~4-4UNC,14 American thread specifications
Support non-standard thread custom production

M8~M100
16 General standard specification

M8~M100
16 General standard specification

product use


Vertical lifting,maximum effective load;

Multiple hoisting rings are combined to skew, the overall working load is greater

 than that of a single hoisting ring;

Multiple hoisting rings are combined to pull side, the overall working load is equal

 to or higher than the vertical pulling load.



The most suitable for single lifting ring vertical lifting;

Multiple lifting rings combined with diagonal pull, the overall working load is halved,

not easy to ring horizontal hoisting, easy to break;

Multiple lifting ring combination side pull, the lowest effective load, not easy

to ring horizontal hoisting, easy to break


The product load

All directions of lifting work load is high, more safe and reliable.

The lifting load in all directions is low, and the cable-pull and side-pull are unsafe.

material

High alloy chain steel (G100 steel), quenching and tempering treatment HRC32~36

Q235B, no normalizing treatment;

thread accuracy

Thread to ensure 6G accuracy, GO-NO GO FIXED GAUGES complete inspection,fully qualified;

Thread can not ensure the accuracy of 6G, through stop rules can not ensure full inspection,

 can not ensure that fully qualified;

trademark

With the trademark "Pingli", the products can be traced back and the quality is guaranteed;

No trademark, products can not be traced, quality is not guaranteed;

CE certification

Has the European Union safety certification CE certificate, the product conforms

 to the relevant standards;

No European safety certification CE certificate, the product does

 not meet the relevant standards;

with product number

product number, convenient traceability of products;

No product number, the product can not be traced;

Product liability insurance

Purchase of China life product liability insurance, safety accident is guaranteed.

No product liability insurance

PB Series G100 Eye Type Rotary Lifting Ring  Advantages

PB Series G100 Eye Type Rotary Lifting Ring  Install and use

PB Series G100 Eye Type Rotary Lifting Ring  Download

Technical information Download
PB series parameter table File download
Comparison of PB series products File download
PB series process flow File download
PB series product safety operation manual File download
