Product:PA Series G100 Universal Directing Rotating Lifting Eyebolt Ring

Specifications:M8~M90

         (Metric M thread, American UNC thread, British BSW thread, a variety of specifications spot)

Product number:PA    |     Specifications:M8~M90    |

Load range:0.3T~40T    |   Main material:23MnCrNiMo54

Color:default nacarat    |   Horizontal rotation:360°    |   Vertical flip:230 ° reversible     |

Wechat attention

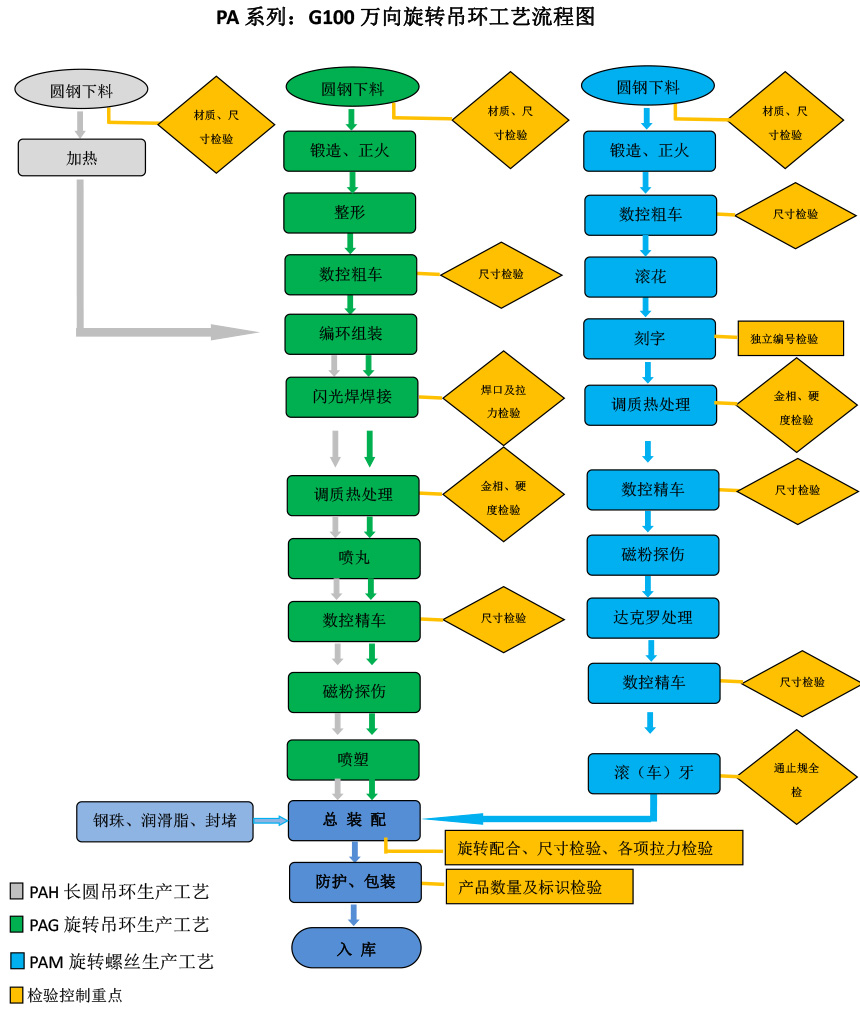

PA Series G100 Universal Directing Rotating Lifting Eyebolt Ring  Process

PA Series G100 Universal Directing Rotating Lifting Eyebolt Ring  Use cases



PA Series G100 Universal Directing Rotating Lifting Eyebolt Ring  Parameters


G100 Universal Directing rotating Lifting Eyebolt

Executive standard:EN ISO 12100:2010EN ISO 3266:2010+A1:2015EN 1677-4:2000+A1:2008

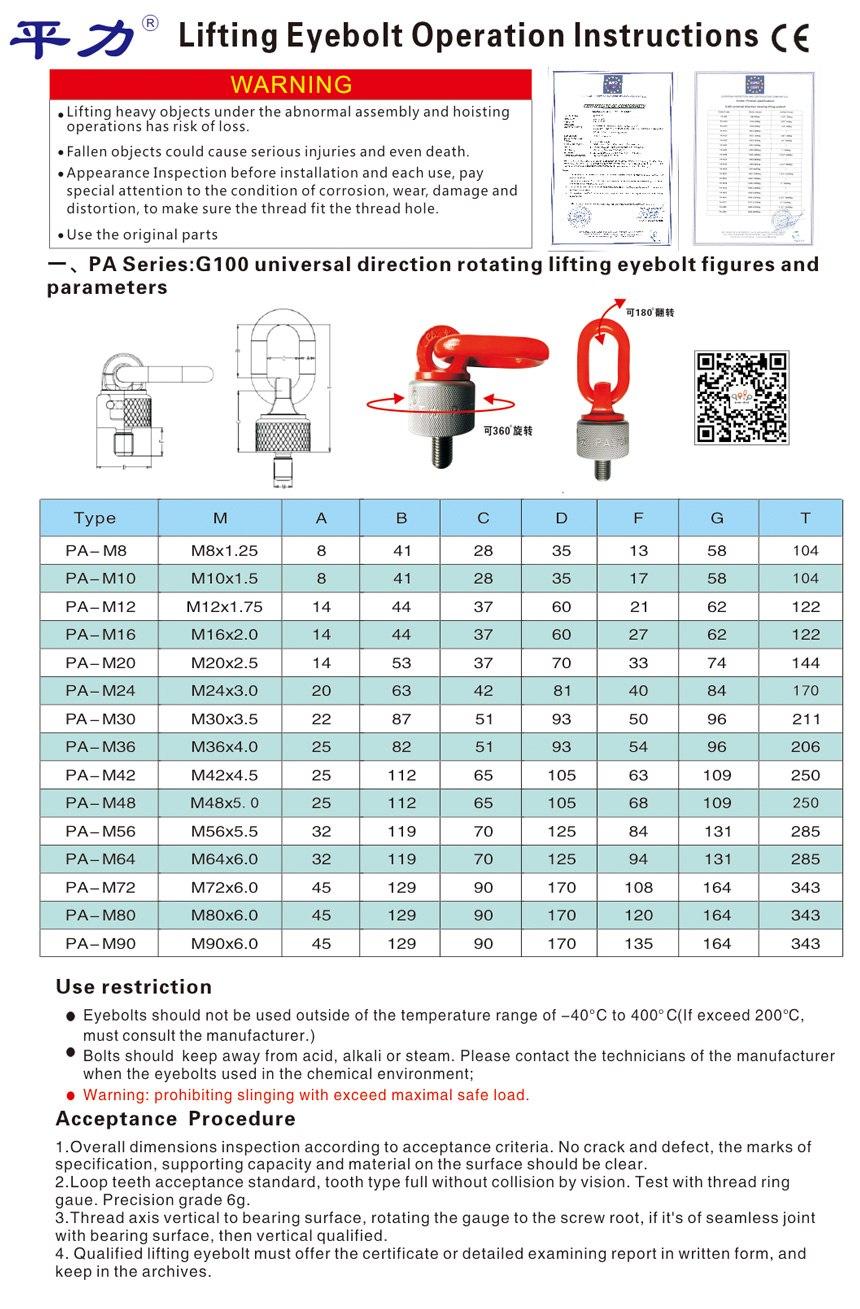

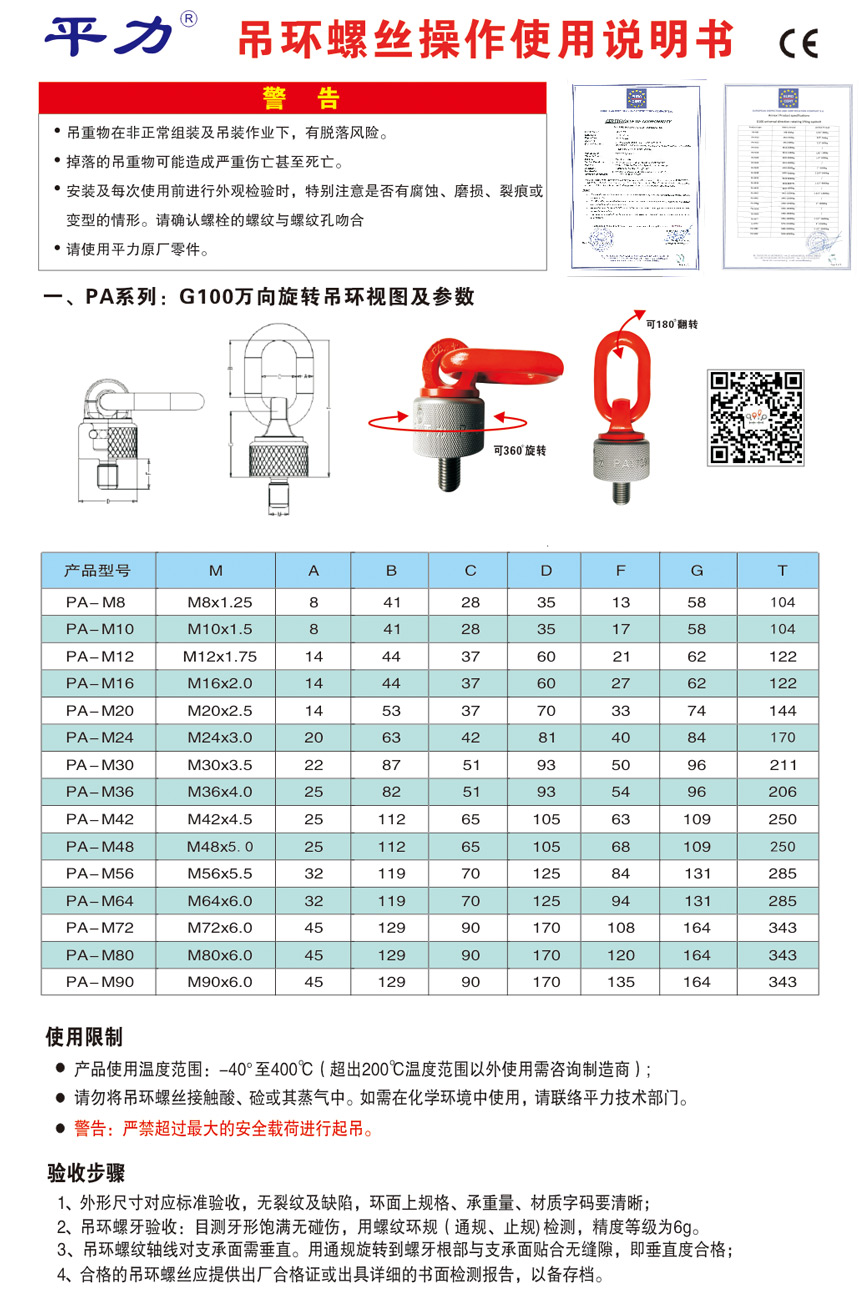

一、Product photographs




二、Product size table


product model

M

A

B

C

D

F

G

T

Weight(KG)

PA-M8

M8x1.25

8

41

28

35

13

58

104

0.31

PA-M10

M10x1.5

8

41

28

35

17

58

104

0.31

PA-M12

M12x1.75

14

44

37

60

21

62

122

1.08

PA-M16

M16x2.0

14

44

37

60

27

62

122

1.10

PA-M20

M20x2.5

14

53

37

70

33

74

144

1.68

PA-M24

M24x3.0

20

63

42

81

40

84

170

2.83

PA-M30

M30x3.5

22

87

51

93

50

96

211

4.85

PA-M36

M36x4.0

25

82

51

93

54

96

206

5.20

PA-M42

M42x4.5

25

112

65

105

63

109

250

7.3

PA-M48

M48x5.0

25

112

65

105

68

109

250

7.42

PA-M56

M56x5.5

32

119

70

125

84

131

285

11.8

PA-M64

M64x6.0

32

119

70

125

94

131

285

12.6

PA-M72

M72x6.0

45

129

90

170

108

164

343

30.1

PA-M80

M80x6.0

45

129

90

170

120

164

343

31.3

PA-M90

M90x6.0

45

129

90

170

135

164

343

33.2

l Special specifications, can be customized;

The specifications of the United States (UNC) and British (BSW) are detailed in the attachment: the comparison table of metric specifications, American specifications and British specifications lifting ring screws.

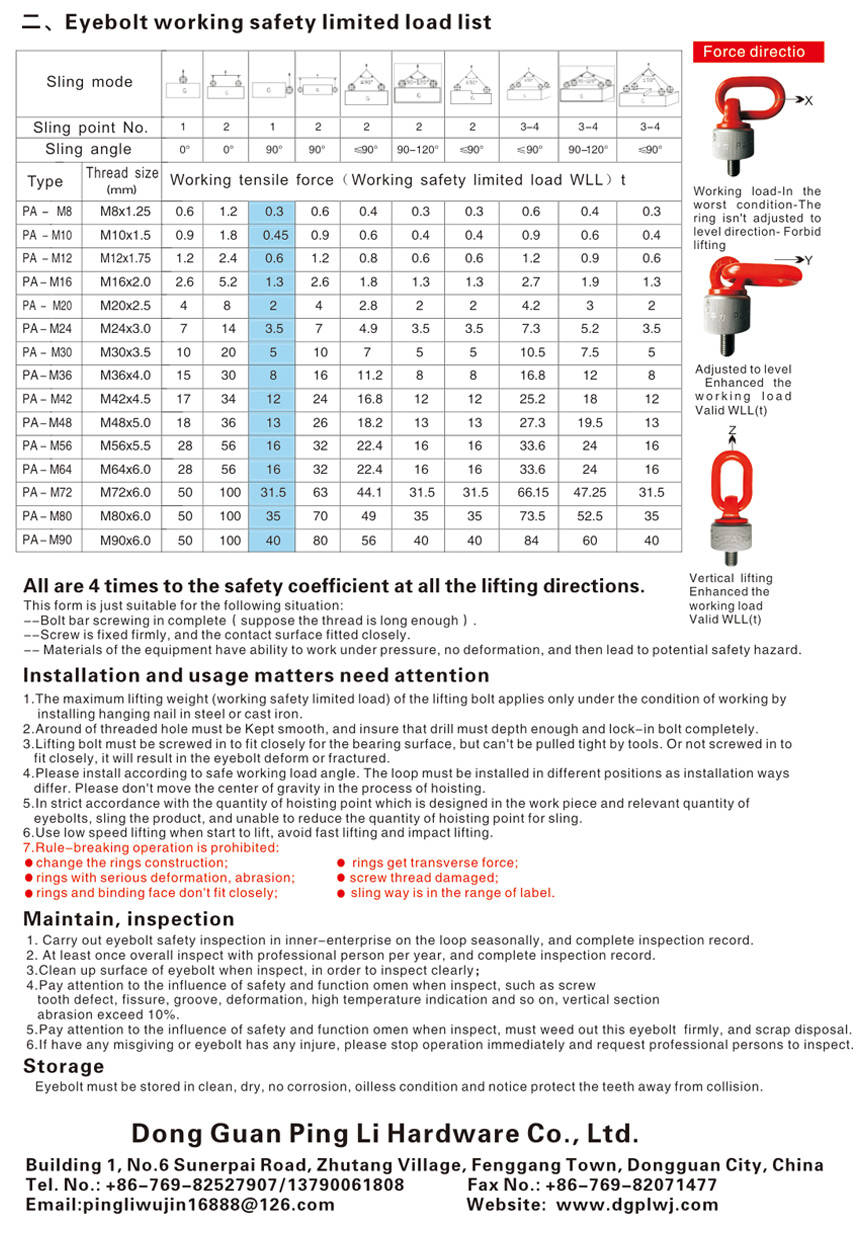

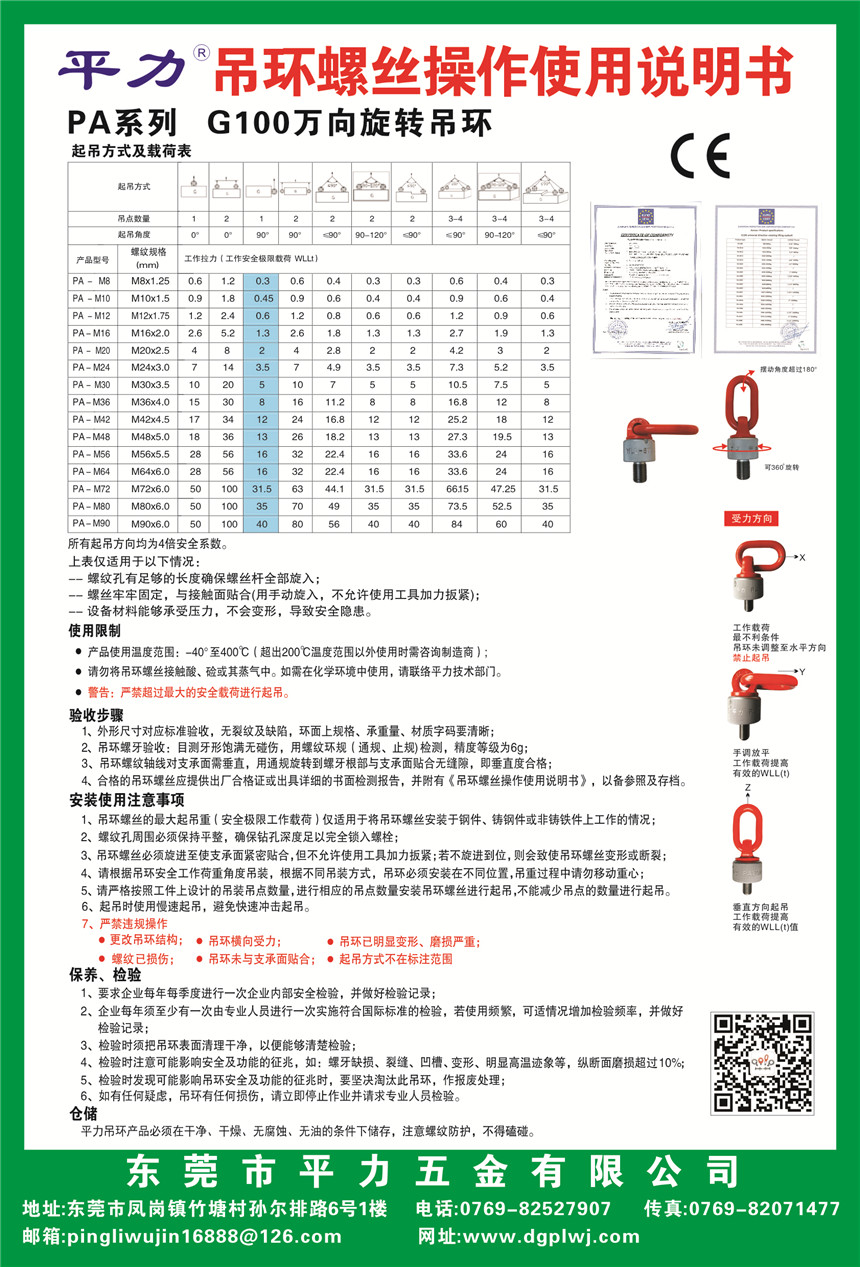

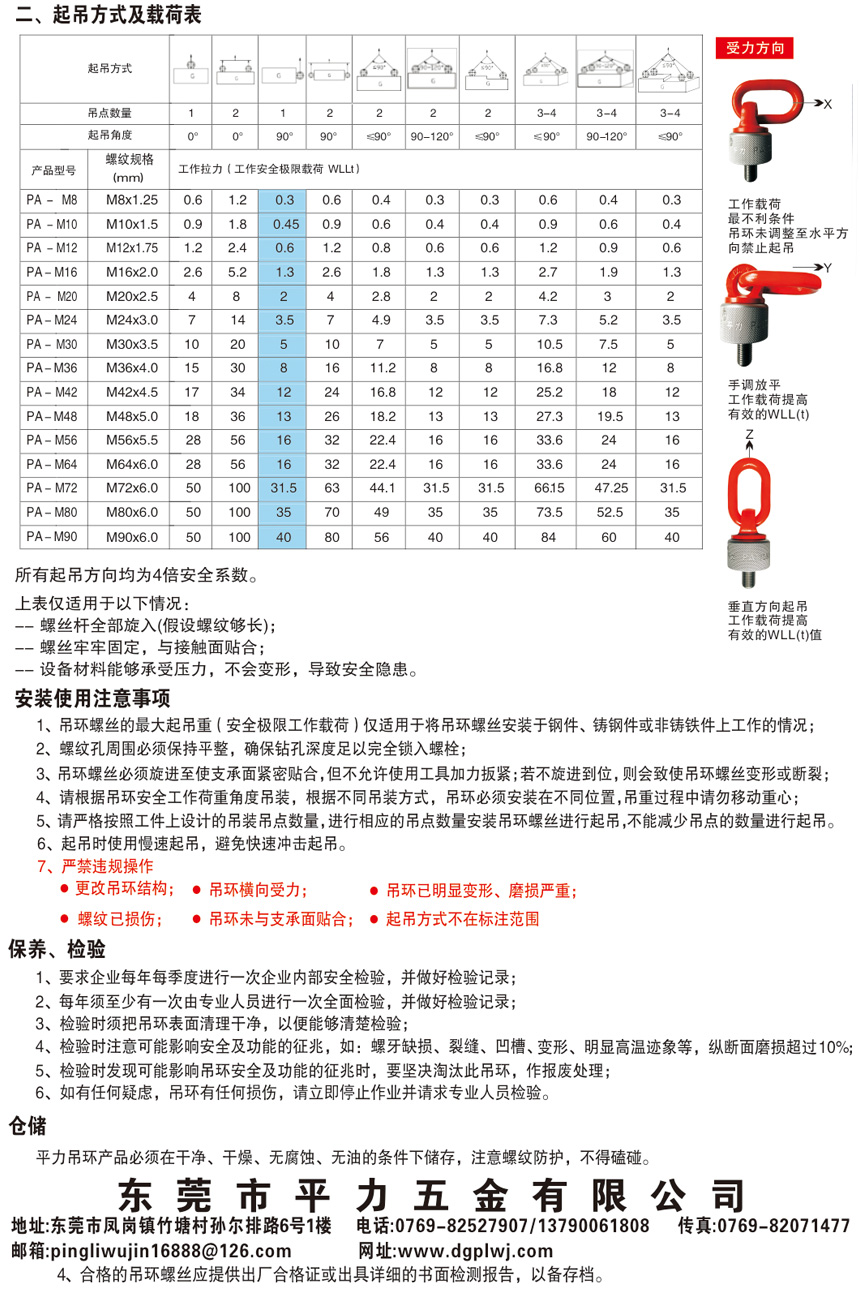

三、Lifting method and load table

Lifting way











Lifting point number

1

2

1

2

2

2

2

3-4

3-4

3-4

Lifting Angle

90°

90°

≤90°

90-120°

≤90°

≤90°

90-120°

≤90°

Product model

Thread specification(mm)

Working tension (work safety limit load WLL) t

PA-M8

M8x1.25

0.6

1.2

0.3

0.6

0.4

0.3

0.3

0.6

0.4

0.3

PA-M10

M10x1.5

0.9

1.8

0.45

0.9

0.6

0.4

0.4

0.9

0.6

0.4

PA-M12

M12x1.75

1.2

2.4

0.6

1.2

0.8

0.6

0.6

1.2

0.9

0.6

PA-M16

M16x2.0

2.6

5.2

1.3

2.6

1.8

1.3

1.3

2.7

1.9

1.3

PA-M20

M20x2.5

4

8

2

4

2.8

2

2

4.2

3

2

PA-M24

M24x3.0

7

14

3.5

7

4.9

3.5

3.5

7.3

5.2

3.5

PA-M30

M30x3.5

10

20

5

10

7

5

5

10.5

7.5

5

PA-M36

M36x4.0

15

30

8

16

11.2

8

8

16.8

12

8

PA-M42

M42x4.5

17

34

12

24

16.8

12

12

25.2

18

12

PA-M48

M48x5.0

18

36

13

26

18.2

13

13

27.3

19.5

13

PA-M56

M56x5.5

28

56

16

32

22.4

16

16

33.6

24

16

PA-M64

M64x6.0

28

56

16

32

22.4

16

16

33.6

24

16

PA-M72

M72x6.0

50

100

31.5

63

44.1

31.5

31.5

66.15

47.25

31.5

PA-M80

M80x6.0

50

100

35

70

49

35

35

73.5

52.5

35

PA-M90

M90x6.0

50

100

40

80

56

40

40

84

60

40


All above is only applicable to the situation: Ø lifting direction are 4 times the safety coefficient

-- The threaded hole is of sufficient length to ensure that the screw rod is all screwed in;

-- Screw firmly fixed and fit to the contact surface (screw in by hand, tool tightening is not allowed);

-- Equipment material can withstand pressure, will not deform, leading to safety risks.




Note: when the screw workpiece is too tight, you can use the release wrench as shown below to release the wrench (release wrench is strictly prohibited for locking).

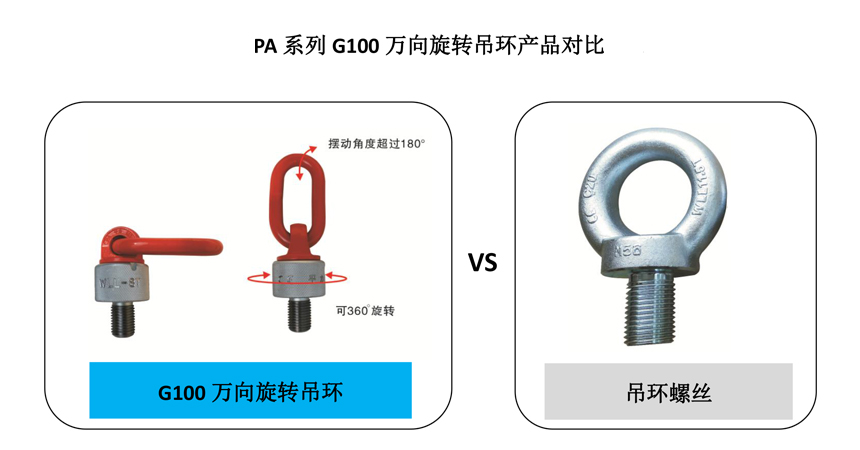

PA Series G100 Universal Directing Rotating Lifting Eyebolt Ring  Comparison


Product name

G100 Universal Swivel Lifting Ring

International Ring screw Gleason

Gernan eyebolt

Executive standard

EN ISO 12100:2010,EN ISO 3266:2010,EN1677-4:2000+A1:2008

GB/T 825-1988

DIN580-2009

Product use

M8~M100,16 regular specifications;
5/16-18UNC~4-4UNC,14 American thread specifications;
Support non-standard thread custom production。

M8~M100
16 General standard specification

M8~M100
16 General standard specification

Products use

Vertical lifting,maximum effective load;
Multiple hoisting rings are combined to skew,
the overall working load is greater than that of a single hoisting ring;

Multiple hoisting rings are combined to pull side,

the overall working load is equal to or higher than the vertical pulling load。

The most suitable for single lifting ring vertical lifting;;
Multiple lifting rings combined with diagonal pull, the overall working load is halved,

not easy to ring horizontal hoisting, easy to break;
Multiple lifting ring combination side pull, the lowest effective load,

not easy to ring horizontal hoisting, easy to break

The product load

All directions of lifting work load is high, more safe and reliable.

The lifting load in all directions is low, and the cable-pull and side-pull are unsafe.

Material

High alloy chain steel (G100 steel),quenching and tempering treatment HRC32~36°

Q235B,No normalizing treatment

Thread accuracy

Thread to ensure 6G accuracy, through and stop gauge 100% full inspection, fully qualified;

Thread can not ensure the accuracy of 6G, pass stop rules can not ensure full inspection,

can not ensure that fully qualified;

trademark

With the trademark "Pingli", the products can be traced back and the quality is guaranteed;

No trademark, products can not be traced, quality is not guaranteed;

CE certification

Has the European Union safety certification CE certificate, the product conforms to the relevant standards;

No European safety certification CE certificate, the product does not meet the relevant standards;

With product number

product number, convenient traceability of products;

No product number, the product can not be traced;

Product liability insurance

Purchase of China life product liability insurance, safety accident is guaranteed.

No product liability insurance

PA Series G100 Universal Directing Rotating Lifting Eyebolt Ring  Advantages


PA Series G100 Universal Directing Rotating Lifting Eyebolt Ring  Install and use

PA Series G100 Universal Directing Rotating Lifting Eyebolt Ring  Download

Technical information Download
PA series product parameters File download
Comparison of PA series products File download
PA series process flow File download
Safety operation instruction for PA series products File download
